Hooking up 24vdc power supply to motion controller

In summary, the conversation is about connecting a Wago 24vdc power supply to a Galil motion controller, with the person seeking help having limited electrical background. The power supply has 120vac L-N-G inputs and outputs 24vdc/2.5A, while the inputs on the controller are GND, +VIN, NC, and PE. The person is unsure about how to connect the power supply's + and - outputs to the controller and is also unsure if they need to connect the controller's PE to the ground busbar. They have been advised to check the manufacturer's website for more information.
  • #1
binto100
3
0
Greetings.

I am asking for help connecting a Wago 24vdc power supply to a Galil motion controller. I have a very limited electrcial background.

The power supply (ps) has 120vac L-N-G inputs (I get that part) and outputs 24vdc/2.5A as two plus (+) outputs and two minus (-) outputs.

The inputs on the controller (con) are GND, +VIN, NC, and PE (the three pronged pitchfork symbol).

I'm guessing ps+ goes to con+VIN but the rest I'm un-certain about since the ps does not output a ground or common. I don't know if the ps- goes to the conNC etc etc. It seems I should also run a wire from conPE to the ground busbar in my panel?

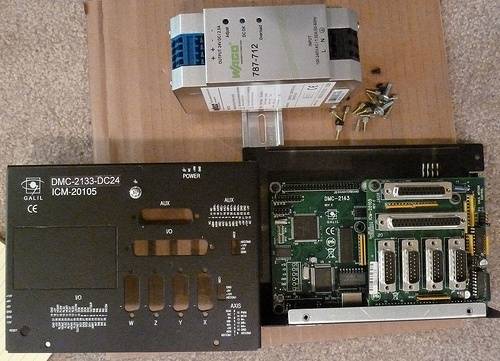

A picture is below and believe me any help is really appreciated. Thanks.

Bruce


Engineering news on Phys.org
  • #2
You can probably find the information at the manufacturer's website -- http://www.galilmc.com/

If I had to guess, I'd say the controller "GND" is probably for the 24v power supply (-) connection. The photo is too small to see any details.
