Which atomic elements are preferred for doping semiconductors and why?

In summary, while there are other atomic elements that can be used for doping, such as phosphorus and indium, they are not preferred over boron and arsenic due to difficulties in handling and controlling them during fabrication. These difficulties include limited solid solubility, incomplete ionization, and differences in atomic radius. Additionally, some dopants have higher activation energies or are more easily oxidized, making them less desirable for use in semiconductor fabrication.
  • #1
Godwin Kessy
91
0
Are there any other atomic elements that are capable for doping apart from the trivalent and pentavalent atoms? If any why is it not preferred over boron and arsenic?

Engineering news on Phys.org
  • #2
Hey!No replies at all.. Say something even if you feel like the question is silly... I really mean it to ask the question...

  • #3
I've never heard of anything outside these two groups, but it does seem that I remember phosphorus being used. Also, you might look into the doping of LEDs. They get some pretty odd mixes

  • #4

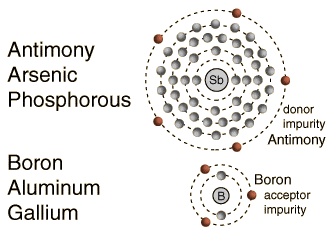

Well there are the Pentavalent impurities and well as the Trivalent impurities.



http://hyperphysics.phy-astr.gsu.edu/hbase/solids/dope.html

Edit: Oops. I read your post too fast missing your mentioning of Pentravalent impurities. Sorry. But for other readers, the link stands.

Last edited:
  • #5
I just ran across this in a foot note in a textbook I was reading the other day. They claim difficulties in handling the elements during fabrication prevent others from being used widely.

The meat of the note specifically says, "These difficulties include limited solid solubility and incomplete dopant ionization. For example Indium-doped silicon suffers from the latter problem. ... Random thermal vibrations suffice to ionize boron, phosphorus, arsenic, and antimony in silicon."

This is from "The Art of Analog Layout" 2nd Edition by Alan Hastings pg 8. You might be able to find the excerpt in Google books.

They recommend reading H. Tian "A comparative study of Indium and Boron Implanted Silicon Bipolar Transistors," IEEE Trans. on Electric Devices Vol. 48 #11 pp 2520-2524. for more information.

  • #6
Thanks..to all, that was something! I welcome more ideas if any.. But to this point am okay..

  • #7
In fact, any material will dope the semiconductor if they have energy level(s) which lies within the bandgap. But the issue is with the degree of doping. Apart from the well known dopants like (Boron and Phosphorus) the dopant energy level is much below the CB of above the VB. Thus complete ionization does not occur, requiring much greater dose of dopants.

There are also other issues. A group II or group VI impurity differs much in atomic radius than group IV Si/Ge, creating compressive or expansive stresses. This will generate defects and/or alter the carrier mobility degrading the quality of the semiconductor.

Even for legitimate dopants, fab labs have to deal with many issues. Like the activation energy is very high for In. Al is easily oxidized. Diffusion of Ga in SiO2 is high requiring thicker oxide mask. P is 10 times diffusible in Si than Sb and As making the doping profile difficult to control. Even As is sometimes discarded for being poisonous.

Thus, when it comes to select a dopant, its selecting one which ionizes well, produces little defects, can be controlled well, has less poison hazard.


1. What is doping of semiconductors?

Doping of semiconductors is the process of intentionally introducing impurities into a semiconductor material in order to modify its electrical properties. This is done in order to create either a p-type semiconductor (with positively charged holes as the majority charge carriers) or an n-type semiconductor (with negatively charged electrons as the majority charge carriers).

2. Why is doping important in semiconductor technology?

Doping is important in semiconductor technology because it allows for the creation of different types of semiconductors with specific electrical properties. This is crucial for the production of electronic devices such as transistors, diodes, and integrated circuits, which are the building blocks of modern technology.

3. What are the two types of doping in semiconductors?

The two types of doping in semiconductors are n-type and p-type. N-type doping involves adding impurities with extra electrons, such as phosphorus or arsenic, while p-type doping involves adding impurities with missing electrons, such as boron or gallium.

4. How does doping affect the conductivity of semiconductors?

Doping affects the conductivity of semiconductors by increasing the number of charge carriers (either electrons or holes) in the material. In n-type semiconductors, the added electrons increase the conductivity, while in p-type semiconductors, the added holes increase the conductivity.

5. What is the difference between intrinsic and extrinsic semiconductors?

Intrinsic semiconductors are pure semiconducting materials, such as silicon or germanium, with no intentional impurities. Extrinsic semiconductors are doped with impurities in order to modify their electrical properties. Intrinsic semiconductors have a lower conductivity compared to extrinsic semiconductors, which have a higher conductivity due to the added charge carriers.
