FM Signal Complex Envelope: Understanding & Resolving Integral

  • Thread starter FrankJ777
  • Start date
  • Tags
    Complex Fm
In summary: I understand it now. In summary, the FM complex envelope is given by: g(t) = Ae^{jθ(t)} where: A = |m(t)| and θ(t) = D_{f} \int^{t}_{-∞} m(σ) dσand if i want to determine the angle θ(t) of the FM complex envelope of the m(t) = Am cos (ωt) signal modulated by, i get: θ(t) = D_{f} \int^{t}
  • #1
FrankJ777
140
6
Hey guys, I'm trying to understand the complex envelope of a Frequency Modulated signal. According to the Textbook by Leon Couch, the complex envelope of an FM signal, g(t) modulated by the signal m(t) is given by:

g(t) = Ae[itex]^{jθ(t)}[/itex]

where

A = |m(t)|

and

θ(t) = D[itex]_{f}[/itex] [itex]\int[/itex][itex]^{t}_{-∞}[/itex] m(σ) dσ

Now if i want to determine the angle θ(t) of the complex envelope of the FM signal modulated by m(t) = Am cos (ωt)

i get:
θ(t) = D[itex]_{f}[/itex] [itex]\int[/itex][itex]^{t}_{-∞}[/itex] Am cos (ωσ) dσ

= D[itex]_{f}[/itex] Am [itex]\frac{sin(ωσ)}{ω}[/itex]|[itex]^{t}_{-∞}[/itex]

= D[itex]_{f}[/itex] Am ( [itex]\frac{sin(ωt)}{ω}[/itex] - [itex]\frac{sin(ω(-∞)}{ω}[/itex] ) This is where i get stuck. I'm not sure what to do with the -∞.

I though I knew how to deal with improper integrals, but I'm not sure where to go from here. Also I'm not sure why the lower limit of integration should be -∞, it seems to me like it should be zero? Any one know how I can resolve that integral? I would like to really understand this concept, but this part has me stuck.

Thanks a lot.

Engineering news on Phys.org
  • #2
It should be 0 to t

  • #3

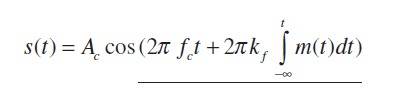

Here is the equation for the FM complex envelope given by a tutorial from the Illinois Institute of Technology, also my textbook by Leon Couch uses an integral with the lower limit at negitive infinty. I did notice however that there are some tutorials that use 0 as the lower limit. Anyways, I'm not sure what to do with this.



Here's a link to the whole tutorial.

http://www.ece.iit.edu/~biitcomm/research/references/Other/Tutorials%20in%20Communications%20Engineering/Tutorial%2017%20-%20Frequency%20Modulation%20(FM)%20,%20FSK,%20MSK%20and%20more.pdf

  • #4
Read the wikipedia page for fm modulation. Also, try to understand phase modulation vs frequency modulation.

I'll take a stab at it, but I'm not an expert. Since, in the above equation, the intregal represents the phase, you must integrate the frequency since the beginning of time to determine the phase. Since you are dealing with a sinewave and it repeats you can assume an arbitrary starting time. I'm not sure about the difference between starting at 0 or pi/4 or any other initial time. But I think you just exploit the periodic nature of the signal.

  • #5
I read the whole tutorial: it tries to keep things simple, which is a good (since it is just an introductory tutorial), but I think this may lead to some inconsistencies if you aren't careful. However, I noted a slightly abused notation; thus, let me restate things a bit.

Given the following signal: [itex]s(t) = A_c\cos(2\pi f_c t + \varphi(t))[/itex], you can define the so-called instantaneous phase [itex]\theta(t) \triangleq 2\pi f_c t + \varphi(t)[/itex], and the so-called instantaneous frequency [itex]f_i(t) = \frac{1}{2\pi} \frac{d}{dt} \theta(t)[/itex]. We know that in FM: [itex]k_fm(t)=\frac{1}{2\pi} \frac{d}{dt} \varphi(t)[/itex]. Now, if you try to solve this equation, giving an explicit expression of [itex]\varphi(t)[/itex], you end up with the integral you wrote. Usually, that integral goes from [itex]t_0[/itex] (which can be set equal to zero) to a generic [itex]t[/itex]. However, it isn't technically incorrect to say that it goes from [itex]-\infty[/itex] to [itex]t[/itex] if you let [itex]m(t)[/itex] be a causal signal, i.e. there must exist [itex]t_0[/itex] (which, again, can be zero) such as that [itex]m(t)=0 \ \ for \ \ t<t_0[/itex]. More precisely, the generic expression is: [tex]\varphi(t) = 2\pi k_f \int^t_{t_0} m(\tau) d\tau + \varphi_0[/tex] where [itex]\varphi_0 \triangleq \varphi(t_0)[/itex] is the initial phase (which is irrelevant and can be neglected). By choosing [itex]t_0=0[/itex] and [itex]\varphi_0=0[/itex], you obtain:
[tex]\varphi(t) = 2\pi k_f \int^t_0 m(\tau) d\tau[/tex] and this is the standard formula. If you (re)do all the computations with this formula, you can "forget" the fact that [itex]m(t)[/itex] must be causal, since the integration domain is now a finite time interval. However, if you want to keep using your notation, then you must write: [itex]m(t)=A_m cos(\omega t) u(t)[/itex], where u(t) is the unit step function (zero for t<0, 1 otherwise), where I assumed (for simplicity) [itex]t_0=0[/itex]. Hope this helps.

  • #6
Nice explanation.

  • #7
Thanks for your guy's explanations. If i can sum up what you said...
When we consider signals, m(t) that begin at time t=0 or t> 0, which are realizable signals, we evaluate the integral from the lower limit of 0?
That seems to make sense to me. Hope I understand it correctly.
Thanks.

  • #8
So the integral with the lower limit of neg infinity, is a more general expression, that could include non causal signals?

Last edited:
  • #9
FrankJ777 said:
So the integral with the lower limit of neg infinity, is a more general expression, that could include non casual signals?
You mean "causal", right? Yes, it may be thought as such (theoretically).

meBigGuy said:
Nice explanation.
Thanks!

  • #10
Oops! Causul. Just edited it!
Thanks.


1. What is a FM signal complex envelope?

A FM (frequency modulation) signal complex envelope is a mathematical representation of a FM signal that contains both amplitude and phase information. It is a complex-valued function that describes the instantaneous amplitude and phase of the FM signal at any given time.

2. Why is it important to understand the FM signal complex envelope?

Understanding the FM signal complex envelope allows us to analyze and manipulate FM signals in the frequency domain, which is often more convenient than working in the time domain. It also allows us to better understand the behavior and characteristics of FM signals, which is crucial for designing and optimizing communication systems.

3. How is the FM signal complex envelope related to the integral of the FM signal?

The FM signal complex envelope is the integral of the FM signal. This means that the complex envelope can be obtained by integrating the FM signal over time. The complex envelope contains all the information about the FM signal, including its amplitude and phase, making it a valuable tool for signal analysis.

4. What are some common issues with the FM signal complex envelope, and how can they be resolved?

One common issue with the FM signal complex envelope is that it can become distorted when the FM signal is affected by noise or interference. This can be resolved by using filtering techniques to remove the noise or by using advanced signal processing algorithms to reconstruct the complex envelope from the distorted signal.

Another issue is that the FM signal complex envelope can be difficult to visualize and interpret, especially for signals with multiple frequency components. This can be addressed by using specialized software or tools that can plot and analyze the complex envelope in an intuitive way.

5. Can the FM signal complex envelope be used for other types of modulation?

Yes, the concept of a complex envelope can be applied to other types of modulation, such as amplitude modulation (AM) and phase modulation (PM). However, the specific mathematical expressions for the complex envelope will be different for each type of modulation. It is important to understand the specific characteristics of each modulation scheme to properly analyze and manipulate the complex envelope.
