Vector diagram for no load single phase ideal transformer

In summary, a vector diagram for a no load single phase ideal transformer is a graphical representation of the voltage and current, showing the phase relationship between the primary and secondary windings. It is useful for understanding the transformer's behavior and characteristics, and the angle between the primary and secondary voltage vectors represents the phase shift between the two voltages. In a no load condition, the primary current is significantly reduced while the secondary current remains nearly the same. When a load is connected, the vector diagram will change to reflect the new load conditions, with the angle and current magnitudes adjusting accordingly.
  • #1
naspek
181
0

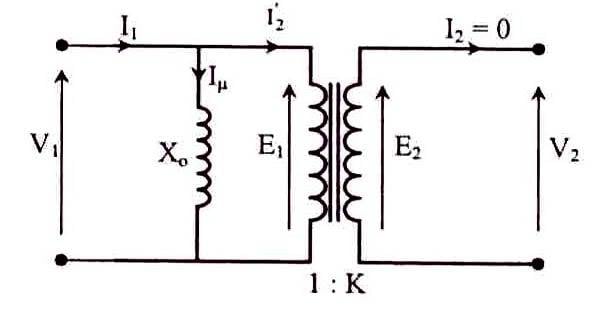

hey there.. how am i going to sketch a vector diagram of the given diagram?
is it same like phasor diagram?

Physics news on Phys.org
  • #2
yeah.


1. What is a vector diagram for a no load single phase ideal transformer?

A vector diagram for a no load single phase ideal transformer is a graphical representation of the voltage and current in the transformer's primary and secondary windings when there is no load connected to the secondary side.

2. How is a vector diagram for a no load single phase ideal transformer useful?

A vector diagram for a no load single phase ideal transformer is useful for understanding the behavior and characteristics of the transformer, such as the phase relationship between the primary and secondary voltages and currents.

3. What does the angle between the primary and secondary voltage vectors represent in a vector diagram for a no load single phase ideal transformer?

The angle between the primary and secondary voltage vectors in a vector diagram for a no load single phase ideal transformer represents the phase shift between the two voltages. For an ideal transformer, this angle is 0 degrees, indicating that there is no phase shift between the primary and secondary voltages.

4. How does a no load condition affect the primary and secondary currents in a vector diagram for a single phase ideal transformer?

In a vector diagram for a no load single phase ideal transformer, the primary current is significantly reduced compared to the secondary current since there is no load on the secondary side. This results in a negligible primary current, while the secondary current remains nearly the same as the secondary voltage is still present.

5. What happens to the vector diagram for a no load single phase ideal transformer when a load is connected to the secondary side?

When a load is connected to the secondary side of a single phase ideal transformer, the vector diagram will change to reflect the new load conditions. The angle between the primary and secondary voltage vectors may shift, and the magnitudes of the primary and secondary currents will increase to meet the load demands.
