Regulated power supply circuit

In summary, a regulated power supply circuit is an electronic circuit that provides a stable output voltage for electronic devices. It consists of a transformer, rectifier, and voltage regulator to convert and regulate the input voltage. The advantages of using a regulated power supply circuit include stable output voltage and protection for the device. It can also be designed for different voltage levels, but the appropriate voltage regulator must be used. There are also different types of regulated power supply circuits, such as linear and switching, each with their own advantages and applications.
  • #1
bibo_dvd
37
0
hello guys ...

i want to design this circuit on proteus and print it to put it on a board

this is a regulated power supply circuit

the problem is that iam a beginner in proteus ...so can anyone help me how to start ?

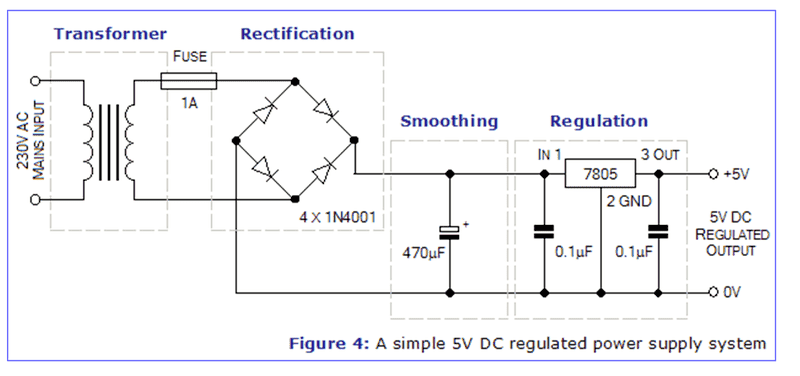

The Circuit :



please help me guys with this ..Thanks :)

Engineering news on Phys.org
  • #2
Because Proteus is a commercial CAD system you should probably get your initial help through Labcenter's website.
http://www.labcenter.com/index.cfm

You would get a better response if you edited your title to something like “Proteus PCB Design Help”.


1. What is a regulated power supply circuit?

A regulated power supply circuit is an electronic circuit that is designed to provide a consistent and stable output voltage, regardless of changes in the input voltage or load. It is used to power electronic devices that require a specific voltage to function properly.

2. How does a regulated power supply circuit work?

A regulated power supply circuit typically consists of a transformer, rectifier, and voltage regulator. The transformer converts the high AC voltage from the wall outlet to a lower AC voltage. The rectifier then converts the AC voltage to DC voltage. The voltage regulator then maintains a constant output voltage by adjusting the current flow through the circuit.

3. What are the advantages of using a regulated power supply circuit?

The main advantage of a regulated power supply circuit is that it provides a stable output voltage, which is essential for the proper functioning of electronic devices. It also protects the device from voltage fluctuations and ensures longer lifespan of the device.

4. Can a regulated power supply circuit be used for different voltage levels?

Yes, a regulated power supply circuit can be designed to provide different output voltages by using different voltage regulators or by adjusting the components in the circuit. However, it is important to use the appropriate voltage regulator for the specific voltage level needed.

5. Are there different types of regulated power supply circuits?

Yes, there are different types of regulated power supply circuits, such as linear regulated power supply circuits and switching regulated power supply circuits. Linear regulated power supply circuits use linear regulators to maintain a constant output voltage, while switching regulated power supply circuits use switching regulators to regulate the output voltage. Both types have their own advantages and disadvantages and are used in different applications.
