Finding the frequency of a series parallel circuit using complex notation

In summary: So, you have1kΩ || 500mH = (1kΩ × 500mH) / (1kΩ + 500mH) = 500/1.5 = 333.33 Ω = (333.33 + j0) ΩIn summary, the frequency, ω, of the source in the circuit of Figure 2 is adjusted until ig is in phase with vg. Using complex notation, the value of ω (rad/sec) can be determined by separating the impedance into its real and imaginary parts and finding a value of ω that makes the imaginary part equal to zero.
  • #1
Karma1
3
0
The frequency, ω, of the source in the circuit of Figure 2 is adjusted until ig is in phase with vg.

(a)using complex notation, determine the value of ω (rad/sec)

Can anyone out there please help with this question? I've tried multiple methods but I am really struggling with simplifying the equation and my answers are wildly inaccurate.

(Please see attached document for details of the circuit)


Attachments

  • Complex Circuit.png
    Complex Circuit.png
    4 KB · Views: 544
Physics news on Phys.org
  • #2
Karma1 said:
The frequency, ω, of the source in the circuit of Figure 2 is adjusted until ig is in phase with vg.

(a)using complex notation, determine the value of ω (rad/sec)

Can anyone out there please help with this question? I've tried multiple methods but I am really struggling with simplifying the equation and my answers are wildly inaccurate.

(Please see attached document for details of the circuit)

You'll have to demonstrate an attempt so that we can see how to help.

  • #3
Karma1 said:
Ive tried multiple methods but I am really struggling with simplifying the equation and my answers are wildly inaccurate.
Hi Karma1! http://img96.imageshack.us/img96/5725/red5e5etimes5e5e45e5e25.gif

To get you started, at a frequency ω, what is the impedance of 1kΩ || 500mH? Express your answer in the form: a + jb

Last edited by a moderator:
  • #4
Hey NascentOxygen,

I havn't got a clue where to start I'm sorry.

  • #5

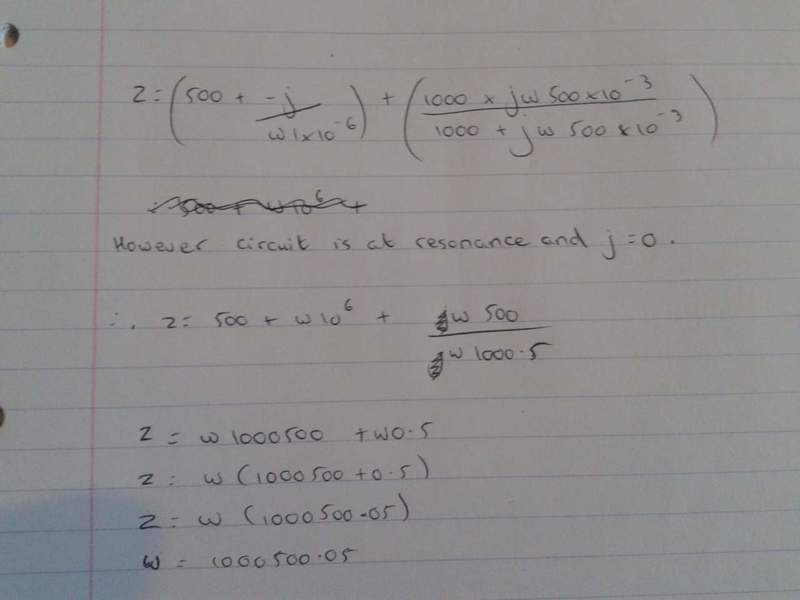

This is what I've managed so far.


Attachments

  • Complex Calculations.jpg
    Complex Calculations.jpg
    21.4 KB · Views: 520
  • #6
j is not zero; j is the square root of -1. What is zero at resonance is the imaginary term of the impedance.

You've got the correct approach for determining the impedance. What you need to do is separate it into its real and imaginary parts; write it in the form: [real part] + j[imaginary part], and then deal with finding a value for ω that makes [imaginary part] zero.
