Wiring a 6 channel audio with a 2 channel RCA

In summary, the conversation discusses the speaker setup for a PS3 and PC, with the individual wanting to create a box to switch between the two. They are having trouble with the switch and are looking for guidance on how to wire it up to keep the channels separate. They also provide a visual representation of their setup and mention using a SPDT switch.
  • #1
Wetmelon
154
1
Hi folks, I'm wanting to buy a PS3 but have nowhere to plug in my audio except through a 5.1 system that's already being used by my PC. So, I decided to make a little box to wire up the two together and switch between them. But I'm having trouble with the switch... here's a nice picture in paint of what I want to do:

Audio Interface.png


The 6 channel in and out are both sets of 3 3.5mm stereo phone jacks (female) and the RCA is well... RCA left & right female. The RCA would be wired the appropriate left or right side for all 3 output jacks, giving stereo sound through all speakers

I figured I needed a SPDT switch, but how do I wire up a switch to change between sets of wires that need to stay independent of each other?

Engineering news on Phys.org
  • #2

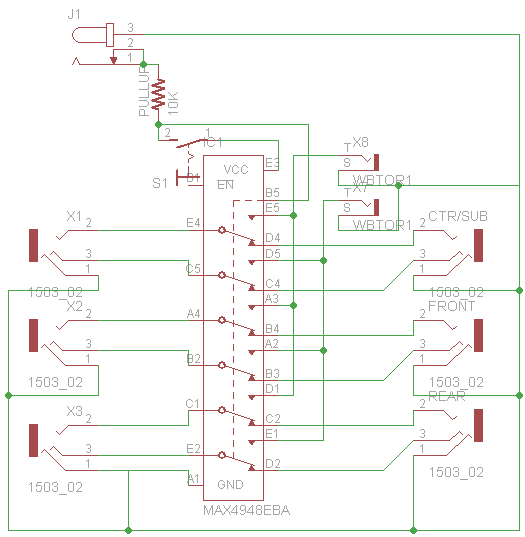

Just to follow up, this is what I came up with:
