How to calculate normal stress and shear stress on the beams.

In summary, to determine the normal stress on a beam, you need to know the applied load, cross-sectional area, and distance from the neutral axis, and use the formula σ = F/A. Normal stress is different from shear stress, which is calculated using the formula τ = VQ/It. The maximum normal stress on a beam occurs at the point of highest bending moment, and can be calculated using the equation σmax = Mc/I. These formulas can be used for any type of beam, but may need to be modified for more complex structures. It is recommended to consult with a structural engineer for accurate calculations.
  • #1
adu1905
16
0

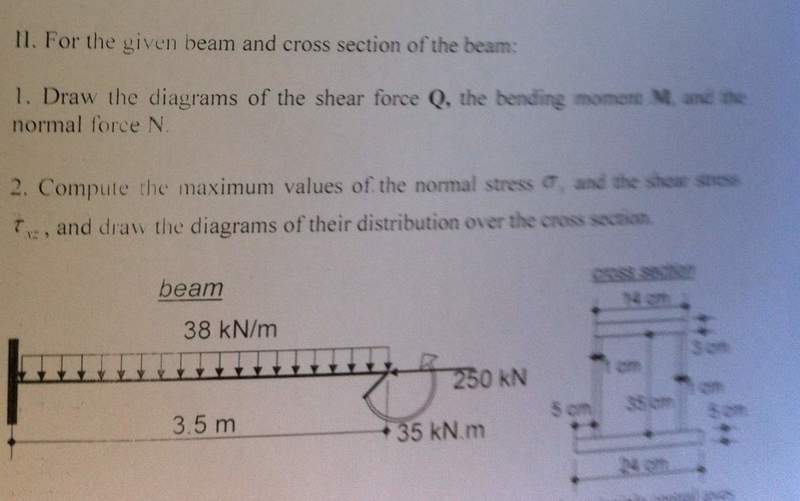

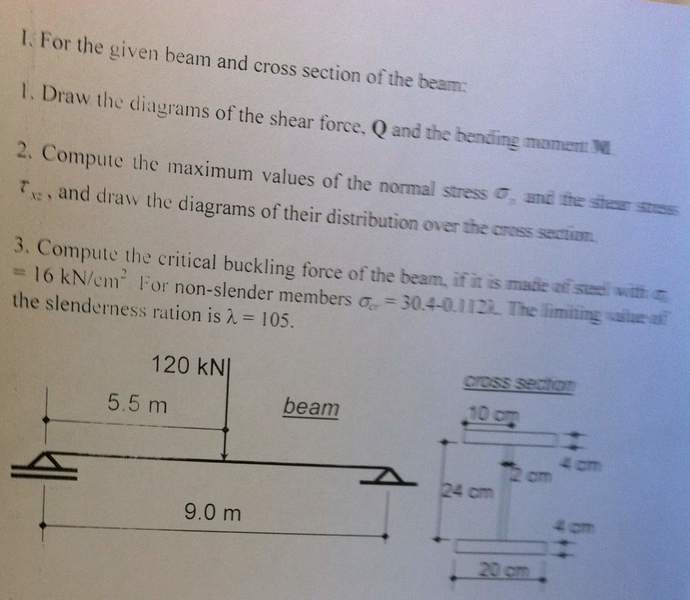

This is the my homework.Who can solve this for me ? i upload my solutions and the problem .Thanks.


Attachments

  • 1111.jpg
    29.7 KB · Views: 481
  • 2222222.jpg
    27.7 KB · Views: 454
Physics news on Phys.org
  • #2
I know this is not a fair way to solve like this.But i didnt have much time to try.If some one help me whit the solutions i will be really happy.

  • #3
I don't see any sign of your attempt at a solution, or any indication of why you cannot start. The forum rules are that you must make an attempt. To start off, what definitions of moment and shear are you using?


1. How do I determine the normal stress on a beam?

To calculate the normal stress on a beam, you need to know the applied load, the cross-sectional area of the beam, and the distance from the neutral axis. The formula for normal stress is: σ = F/A, where σ is the normal stress, F is the applied load, and A is the cross-sectional area. Make sure to use consistent units for accuracy.

2. What is the difference between normal stress and shear stress?

Normal stress is the force per unit area that is applied perpendicular to the cross-sectional area of a material. Shear stress, on the other hand, is the force per unit area that is applied parallel to the cross-sectional area. In simpler terms, normal stress squeezes a material while shear stress causes it to slide or deform.

3. How is shear stress calculated on a beam?

To calculate shear stress on a beam, you need to know the applied shear force, the cross-sectional area of the beam, and the distance from the neutral axis. The formula for shear stress is: τ = VQ/It, where τ is the shear stress, V is the applied shear force, Q is the first moment of area, I is the moment of inertia, and t is the distance from the neutral axis. Again, make sure to use consistent units.

4. How do I determine the maximum normal stress on a beam?

The maximum normal stress on a beam occurs at the point of highest bending moment. To determine this point, you can use a shear and moment diagram or use the equation: σmax = Mc/I, where σmax is the maximum normal stress, M is the maximum bending moment, c is the distance from the neutral axis to the outermost edge of the beam, and I is the moment of inertia.

5. Can I use the same formulas to calculate stress on any type of beam?

Yes, the formulas for normal stress and shear stress on a beam can be used for any type of beam, as long as the beam's cross-sectional area and applied loads are known. However, for more complex or non-uniform beams, the equations may need to be modified. It is always best to consult with a structural engineer for accurate calculations.
