Calculating the number of turns and thickness of an electromagnet


by anru
Tags: electromagnet, number, thickness, turns
anru
anru is offline
#1
Apr25-12, 10:21 AM
P: 7
I'm working on a homemade electromagnet, to use on my racecar
I want to calculate the number of turns of an electromagnet and the thickness of the wire.

But i have tried to search arround in books, and can't really find any thing.

I know my wire is 0,114mm and dimensions for electromagnet is

Hight: 7mm
width: 12mm
lenght: 57mm

The form is like a horseshoe, but with 90* edge. Picture is linked:

http://oi47.tinypic.com/15zqlv8.jpg

My material of the core is steel (ignore the fact about type of steel)

I have 0,7 ampere for use.
Phys.Org News Partner Physics news on Phys.org
The hemihelix: Scientists discover a new shape using rubber bands (w/ video)
Mapping the road to quantum gravity
Chameleon crystals could enable active camouflage (w/ video)
Bob S
Bob S is offline
#2
Apr25-12, 10:41 AM
P: 4,664

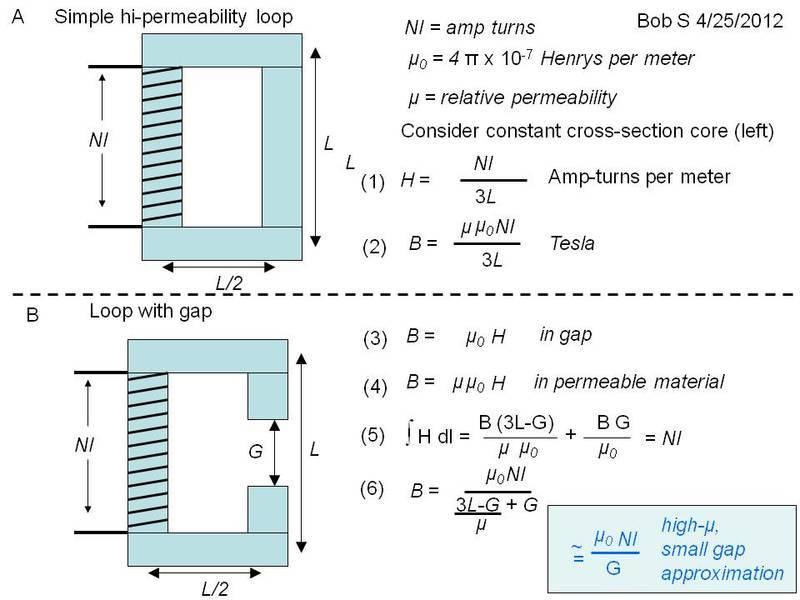

Please review the equations for the magnetic field strength B in the attachment. In particular, understand the derivation of equation (6).The important parameter of the coil is NI, the product of amps times turns.
