Basic Half-Wave Rectifier Problem

  • Thread starter maherelharake
  • Start date
  • Tags
    Rectifier
In summary, a basic half-wave rectifier is an electronic circuit that converts AC to DC by allowing only one half of the input signal to pass through. It works by using a diode to block one half of the AC signal, resulting in a pulsating DC output. The main purpose of this type of rectifier is to provide DC power for electronic devices, but it has a low efficiency due to only utilizing half of the input signal. To improve efficiency, a full-wave rectifier can be used, along with a filter capacitor to smooth out the output signal.
  • #1

Homework Statement


I attached the problem and my attempts at a solution.


Homework Equations





The Attempt at a Solution



Can anyone check my parts a-c? I also need help figuring out parts d and e. Thank you very much for any help.

Physics news on Phys.org
  • #2
Hi,

I can't see an attachment.

Claude.

  • #3

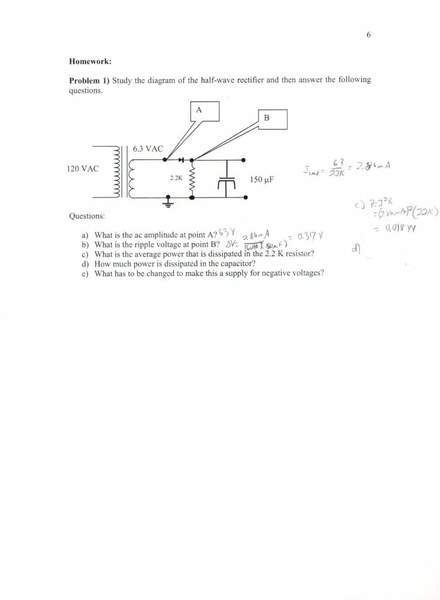

Oh I'm sorry. I guess it didn't upload properly for somer reason. Here it is.


Attachments

  • Scan 1.jpg
    Scan 1.jpg
    9.5 KB · Views: 369
  • #4
Any thoughts? Thanks again.

  • #5


I am happy to provide a response to your inquiry about the Basic Half-Wave Rectifier Problem. Based on the attached problem and your attempts at a solution, it seems like you have a good understanding of the basic principles involved in half-wave rectification. However, I would suggest double-checking your calculations for parts a-c to ensure accuracy.

For part d, it appears that you are asked to calculate the average output voltage of the rectifier. This can be done by integrating the output voltage waveform over one cycle and dividing by the time period. Alternatively, you can use the formula V_avg = Vp/π, where Vp is the peak output voltage. For this problem, Vp would be equal to the voltage drop across the diode, which is 0.7V.

For part e, you are asked to calculate the output ripple voltage, which is a measure of the amount of variation in the output voltage. This can be calculated using the formula Vr = Vp/2fCR, where f is the frequency of the input AC voltage, C is the capacitance in the circuit, and R is the load resistance. You would need to use the values given in the problem for these variables.

I hope this helps guide you in the right direction for completing the problem. Remember to always double-check your calculations and be sure to clearly state any assumptions you make in your solution. Best of luck with your homework!


1. What is a basic half-wave rectifier?

A basic half-wave rectifier is a type of electronic circuit that converts AC (alternating current) to DC (direct current) by allowing only one half of the input signal to pass through. It typically consists of a diode, a resistor, and a load.

2. How does a basic half-wave rectifier work?

A half-wave rectifier works by using a diode to block one half of the AC input signal. This results in a pulsating DC output signal, where the negative half of the AC signal is removed and the positive half is allowed to pass through. The resistor and load help to smooth out the output signal.

3. What is the purpose of a half-wave rectifier?

The main purpose of a half-wave rectifier is to convert AC power to DC power, which is necessary for most electronic devices to function properly. It is commonly used in power supply circuits to provide a steady source of DC power.

4. What are the advantages and disadvantages of a half-wave rectifier?

One advantage of a half-wave rectifier is its simplicity, as it only requires a few basic components. It is also cost-effective and can be used in low-power applications. However, a major disadvantage is its low efficiency, as it only utilizes half of the input signal. This results in a large amount of power being wasted as heat.

5. How can the efficiency of a half-wave rectifier be improved?

The efficiency of a half-wave rectifier can be improved by using a full-wave rectifier, which utilizes both halves of the input signal. This can be achieved by using a bridge rectifier or a center-tapped transformer. Additionally, adding a filter capacitor to the circuit can further smooth out the output signal and improve efficiency.
