Challenging decoder question

  1. Dec 20, 2009 #1

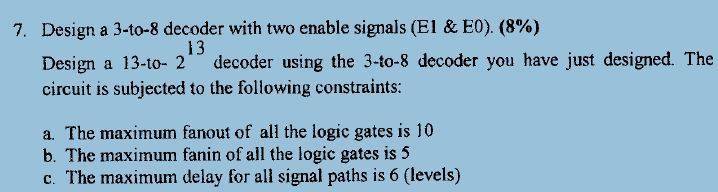

    I have no idea about how to use two "enable inputs". (the second part of the question)


    Attached Files:

    • ??.JPG
      File size:
      24.5 KB
      Views:
      54
  2. jcsd
  3. Dec 21, 2009 #2

    berkeman

    User Avatar

    Staff: Mentor

    When neither of the enable inputs is asserted, all of the outputs are disabled.

  4. Dec 21, 2009 #3
    If you're stuck on implementation, I advise you to study the 74LS137 3-to-8 decoder :)

  5. Dec 21, 2009 #4

    berkeman

    User Avatar

    Staff: Mentor

    Actually, since the question doesn't require address latches, it might be easier for them to study the 74xx138 IC. Good suggestion, though.

    (xx = HC, AC, LS, whatever).

  6. Dec 22, 2009 #5
    berkeman: you're quite right, ty
