Electrical Potential Question

  1. Sep 17, 2014 #1

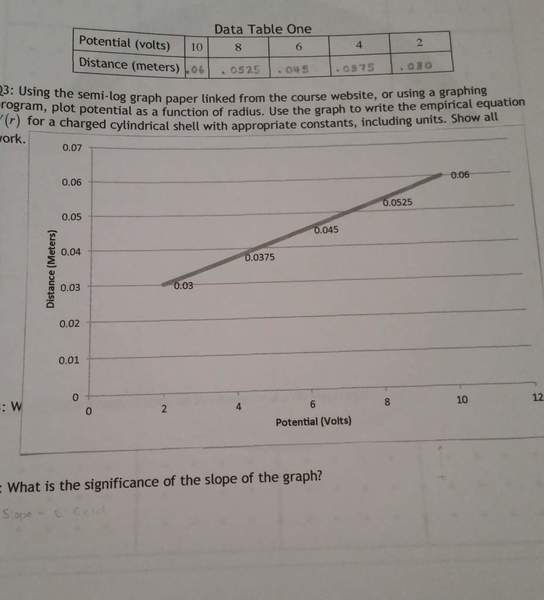

    Q1: Use the graph (see attachment) to write the empirical equation V(r) for a charge cylindrical shell with appropriate constants, including units. Show all work.

    Q2: What is the interpretation of the horizontal axis intercept?

    Q3: What is the significance of the slope of the graph?

    I know I have to start Q1 using Gauss's Law, but what to do from that there is beyond me. The cylindrical shell that I obtained this information from what negatively charged on the inner electrode and positively charged on the outer electrode. Thus as I measured the potentials moving farther from the negatively charged electrode, outward, to the positively charged electrode, I was able to record and graph the data you see in the attachment. Thank you in advance.


    Attached Files:

    Last edited: Sep 17, 2014
  2. jcsd
  3. Sep 17, 2014 #2

    Simon Bridge

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member
    2016 Award

    ... that is because you don't have to use Gauss' Law.
    You are asked to find the equation of V vs r. You are given a graph of r vs V.

    Note: r, in this case, is not a radius.

  4. Sep 17, 2014 #3
    Okay, I graphed it wrong then I'll work on fixing that. But what about deriving an empirical equation. I'm still having trouble getting started on what to do.

  5. Sep 17, 2014 #4

    Simon Bridge

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member
    2016 Award

    When you plot your graph of V vs r, what type of curve do you get?
    What is the equation for that sort of curve?

  6. Sep 17, 2014 #5
    So when plotting the graph correctly this time it still formed a straight line, but with a steeper slope. So from there would I find the slope using (y2 - y1)/(x2 - x1) and then work that in to the equation for a line y = mx + b?

    (10 - 2)/(0.06 - 0.03) = 266.7 V/m

    Then solving for b in the equation y = mx +b

    y = b when x = 0

    So looking at the point V = 2 and r = 0.03, when V drops by 2V, r drops by 2*0.00375 = 0.0075 m.

    When V(r) = 0 , r = r = 0.03 - 0.0075 = 0.0225m

    Therefore b = 0.0225m

    V = 266.7 V(r) * r + 0.0225
    So the empirical equation would be:
    V(r) = (V - 0.0225m)/(266.7 * r)

    ?? I feel like I went wrong somewhere as this equation doesn't quite make sense to me.

    Also what would the horizontal axis then represent? and would the slope of the line on the graph represent the magnitude of the E-field?

  7. Sep 17, 2014 #6

    Simon Bridge

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member
    2016 Award

    If you have (0,0) on your graph, you can just draw the best-fit line back and read the y-intercept value off the axis.

    ... neither of these is the equation of a straight line.
    You just said that V vs r is a straight line! Thus: V(r)=mr+c

    What does the horizontal axis normally represent for a graph?
    In a graph of y vs x, the horizontal axis is the x axis - it represents the condition that y=0.
    In this case, the vertical axis has a physical meaning, it's the electric potential difference.
    Difference from what?

    ... you should have some notes on the relationship between the electric potential and the electric field that can tell you that.
