What is the Symbol for the Black Electronic Component?
- Thread starter weitao
- Start date
-
- Tags
- Components Electronic
In summary, the black colour one is an integrated circuit, commonly referred to as "chip on board" or COB. It is a technique used in mass production of inexpensive devices, where the IC die is directly assembled onto the PCB without a plastic package. It offers no rework capability and is covered by a black plastic blob for protection. The symbol for COB is a black plastic blob covering the die on the PCB.
- #2
vk6kro
Science Advisor
- 4,079
- 41

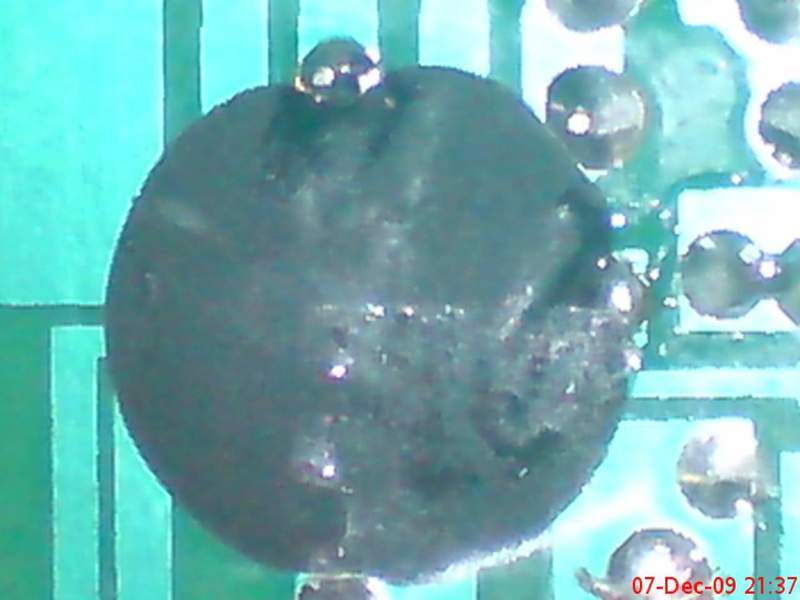

That is an integrated circuit. They are made like this in cheap, mass produced equipment.
I have seen one in a digital thermometer.
They look like a blob of plastic, but they are fairly immune to vibration and moisture. However if they failed, the whole printed circuit board would have to be discarded.
- #3
berkeman
Mentor
- 67,022
- 19,834
weitao said:
Just to add a little bit to vk6kro's post -- it's called "chip on board", or COB. It's a technique for assembling an IC die onto a PCB, without first injection molding the die into a plastic package with leads, and soldering that onto the PCB. As vk6kro says, it is used in high-volume manufacturing of inexpensive devices, generally, and does not offer any rework capability.
- #4
- #5
vk6kro
Science Advisor
- 4,079
- 41

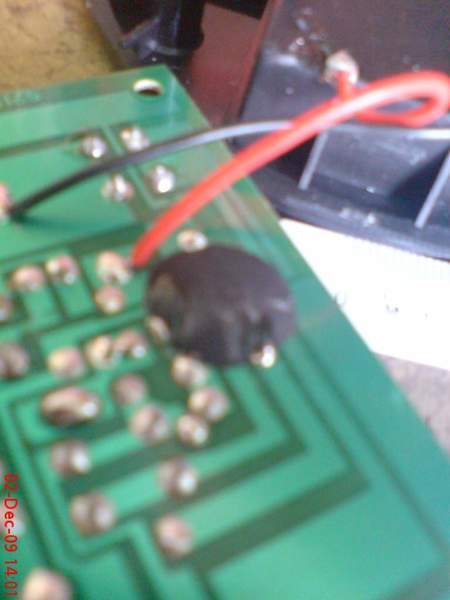

Yes, that one. It is an integrated circuit.
- #6
berkeman
Mentor
- 67,022
- 19,834
More info on COB:
http://www.siliconfareast.com/cob.htm
Once the die is wire bonded to pads on the PCB, it is covered by that black plastic blob to passivate it.
- #7
weitao
- 32
- 0
wat is the symbol?
