Equivalent capacitance for infinite ladder

In summary, the "Equivalent capacitance for infinite ladder" is the total capacitance of an infinite ladder circuit, which is made up of an infinite number of identical capacitors connected in a series and parallel combination. It is an important concept because it simplifies complex circuits and allows for more efficient calculation of total capacitance. The formula for calculating equivalent capacitance is Ceq = C/2, and it can be greater than the capacitance of individual capacitors in a parallel combination. This concept has various real-world applications, such as in electrical filters, signal processing circuits, and electronic devices.
  • #1
anand raj
17
0

Homework Statement

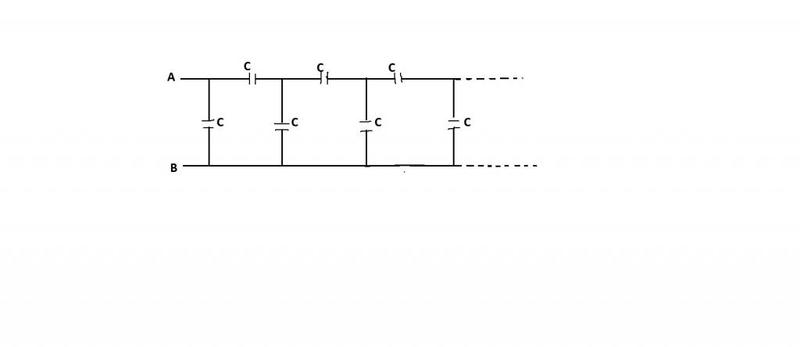

the effective capacitance across AB of the infinite ladder shown in the figure



The Attempt at a Solution



Physics news on Phys.org
  • #2
Welcome to PF!

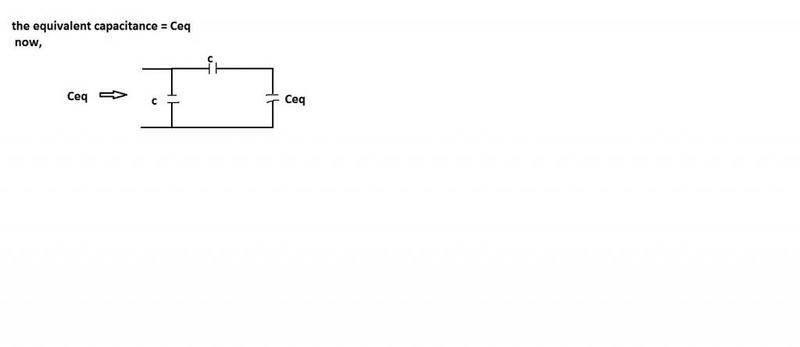

Your attempt is correct so far. Denote Ceq on the right by X and determine the input capacitance Ceq: You have X and C connected in series, and C again, connected parallel with X and C.

ehild
