Help drawing a cap screw

  1. Apr 29, 2012 #1
    http://i46.tinypic.com/1zg877r.png

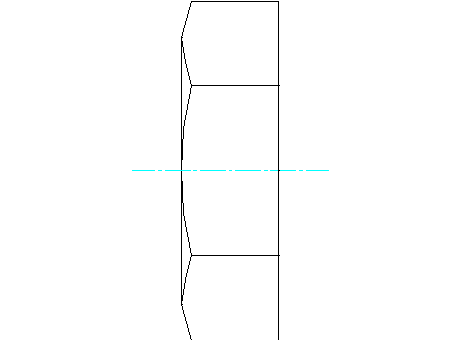

    So I'm trying to draw a "½”-13 UNC x 1-1/2” long round head cap screw with hex nut and plain flat washer" and this is what I came up with. How do I draw it with the hex nut and the plain flat washer? What does it look like?

    Last edited by a moderator: Apr 29, 2012
  2. jcsd
  3. Apr 29, 2012 #2

    Redbelly98

    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper

    I did some google image searches on these terms:
    cad drawing nut washer
    cad screw nut washer
    drawing screw nut washer​
    Here are some things that turned up:

    Scroll down to "Nuts and Washers" here

    http://www.jayespace.com/engineering/images/1812_100_118-nut-bolt-third-angle-drawing.png
    ( ↑ at http://www.jayespace.com/engineering/chapter-hxq.html )

    http://www.portlandbolt.com/image/products/full/clipped_washer_drawing.jpg

    http://www.portlandbolt.com/image/products/full/jam_nut_drawing.jpg



    Hope that helps!

    p.s. I have replaced your wide image with a link to the image, since the wide image messes up the view of this discussion by requiring a horizontal scrollbar to read the text.

    Last edited by a moderator: May 8, 2017
  4. Apr 30, 2012 #3
    Also, several manufacturers and suppliers offer free downloadable CAD images of their fasteners. McMaster-Carr has a good selection, and the CAD files are available in a variety of formats.
