  • #1
alexmath
35
0

Homework Statement



Problem is in the pic. uploaded.


Homework Equations





The Attempt at a Solution



Also in the pic. The right answer is -3, where is the fault? Thank you!


Attachments

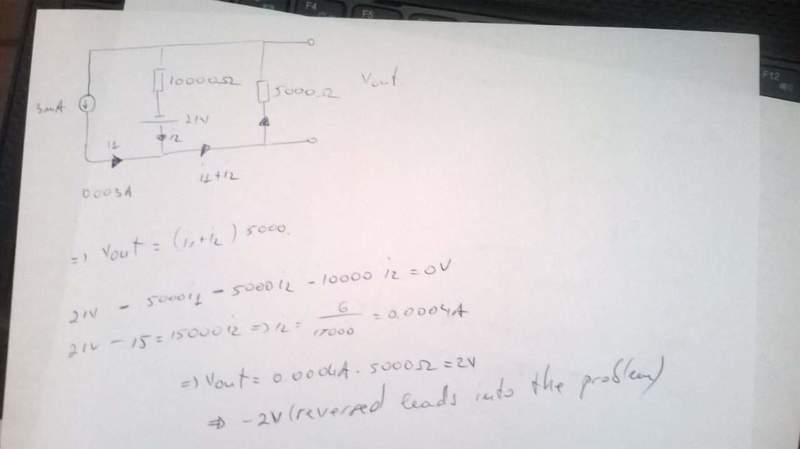

  • problem.PNG
    10.7 KB · Views: 393
  • WP_20140524_16_19_18_Pro.jpg
    15.3 KB · Views: 398
Physics news on Phys.org
  • #2
It is hard to read your approach.
You just consider I2 to calculate the final voltage, but there is also I1 flowing through the resistor. And you should use units in a consistent way.

  • #3
You are right. My mistake!

Last edited:
