Mathematica NDSolve

  1. Jan 26, 2015 #1
    hi everybody
    i recently used NDSolve for a system with three second-order equations but it says:
    "NDSolve::ndsdtc:
    ("\"The time constraint of 1.` seconds was exceeded trying to solve for derivatives, so the system will be treated as a system of differential-algebraic equations. You can use Method->{\\\"EquationSimplification\\\"->\\\"Solve\\\"} to have the system solved as ordinary differential equations."

    whats the problem? can anyone help me soon?! i cant give answer even if i change the Method or using DSolve instead NDSolve... :(

  2. jcsd
  3. Jan 29, 2015 #2

    Dale

    Staff: Mentor

    It sounds like the equations that you have are not in the form of a derivative on the left and a function on the right. It looks like Mathematica is having trouble trying to put it in that form.

    Can you post the code that is generating this error?

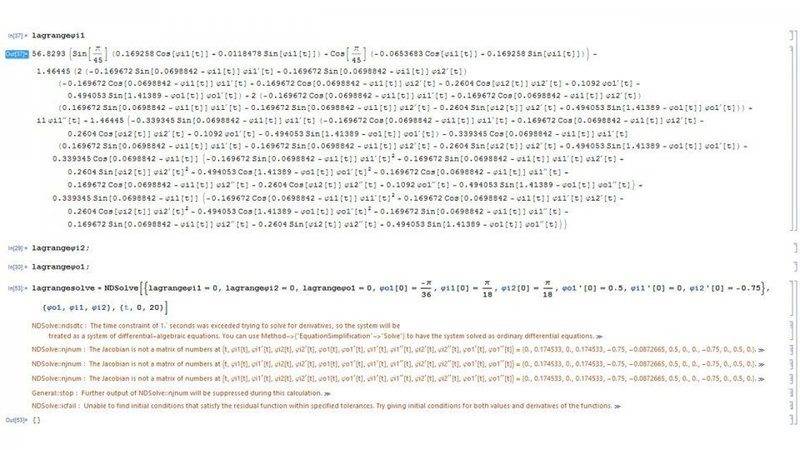

  4. Jun 26, 2015 #3
    the code is :

  5. Jun 26, 2015 #4

    Dale

    Staff: Mentor

    Ugh, I cannot do anything with a blurry picture of code. Please post the code, not a picture of the code. I need enough code to be able to replicate the error here.

  6. Jun 26, 2015 #5
    Ok but because of containing special characters,you must copy the code into your own Mathematica to see it correctly...
    Code (Text):
