Mathematica plotting

  • #1
132
3

Homework Statement




Homework Equations


E= kq/r^2 * r-hat

where q= +/-(1.6*10^-19)

The Attempt at a Solution

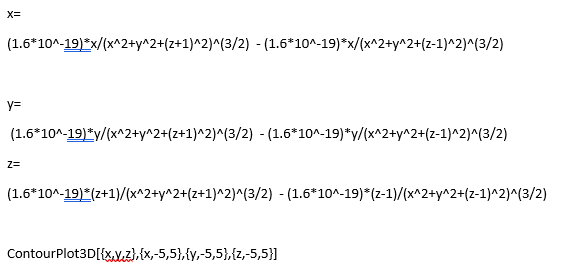

x=

(1.6*10^-19)*x/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*x/(x^2+y^2+(z-1)^2)^(3/2)


y=

(1.6*10^-19)*y/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*y/(x^2+y^2+(z-1)^2)^(3/2)

z=

(1.6*10^-19)*(z+1)/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*(z-1)/(x^2+y^2+(z-1)^2)^(3/2)


ContourPlot3D[{x,y,z},{x,-5,5},{y,-5,5},{z,-5,5}]

This should work but it is giving me a recursion limit error. I know that the math (well at least I think) is correct.

Any suggestions on how to fix the error?


Attachments

  • upload_2018-9-12_15-48-13.png
    1.6 KB · Views: 479
  • upload_2018-9-12_15-48-59.png
    5.4 KB · Views: 254

Answers and Replies

  • #2
collinsmark
Homework Helper
Gold Member
2,930
1,351

Homework Statement


View attachment 230602

Homework Equations


E= kq/r^2 * r-hat

where q= +/-(1.6*10^-19)

The Attempt at a Solution


x=

(1.6*10^-19)*x/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*x/(x^2+y^2+(z-1)^2)^(3/2)


y=

(1.6*10^-19)*y/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*y/(x^2+y^2+(z-1)^2)^(3/2)

z=

(1.6*10^-19)*(z+1)/(x^2+y^2+(z+1)^2)^(3/2) - (1.6*10^-19)*(z-1)/(x^2+y^2+(z-1)^2)^(3/2)


ContourPlot3D[{x,y,z},{x,-5,5},{y,-5,5},{z,-5,5}]

This should work but it is giving me a recursion limit error. I know that the math (well at least I think) is correct.

Any suggestions on how to fix the error?

I haven't checked your physics; the rest of this reply is solely involving the recursion limit error.

You are using your x, y, and z variables for different things in different places. Try changing the names of your variables appropriately.

For example, right now you have
x = a function of x (and also y and z).

Try changing that to

x1 = a function of x (and also y and z)

or some other variable name that makes more sense.

  • #3
132
3

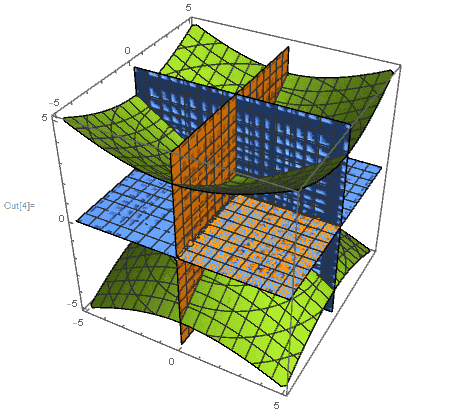

Thanks, that worked. It gave me an answer with the expected lines but it does look funny.



Attachments

  • upload_2018-9-12_18-15-33.png
    44.8 KB · Views: 229
