During winter, when I can't take pictures of the stars, I tend to take pictures of decapsulated computer chips. As my technique improves, I'm able to find things that had been destroyed in earlier attempts- for example, I can now decapsulate MEMS devices leaving intact the suspended Si membrane, which makes for some good in-class discussions. Most recently, while processing an old iPhone, I've uncovered a bunch of 'things' that I hope PF-ers here can help identify.

First up are small ICs that seem to be printed as thin films on quartz or sapphire- not sure which:





Some of these circuits are fairly complex:



Does anyone know what the substrate material is and what the function of these circuits are? They are typically located within ceramic enclosures.

Next are small blocks of Si (again, located within ceramic enclosures) that have Au traces on them, and there seems to be a thin film between the traces and the Si. Not sure what these are for:





The traces came off of these during the final Nitric Acid wash.

Last are some more complex thin-film circuits, and again the substrate is not Si (maybe Ge?). These are incredibly fragile and little bits regularly break off whenever I try to handle them:





Any info/guidance about these would be most appreciated! Thanks in advance...


Attachments

  • c447edfc-6a3e-4d7a-8230-1ce3372dcf3e-original.jpg
    108.5 KB · Views: 496
  • 76d71adf-4741-4bec-b8a9-d8704beb1e6f-original.jpg
    52.6 KB · Views: 387
  • e97f171a-5e84-45b0-8c27-217620400c98-original.jpg
    130.3 KB · Views: 470
  • 4a7e4662-614a-4cb4-9344-c90f3c94ec57-original.jpg
    87.7 KB · Views: 374
  • d09ecda5-2717-46f1-bb11-1de8fbb290e5-original.jpg
    61.4 KB · Views: 383
  • b4e23cdb-f135-4de0-823a-da69a13bfb7c-original.jpg
    89.4 KB · Views: 428
  • b8f18b76-3b5d-49b0-ab0f-c76d65632597-original.jpg
    121.6 KB · Views: 418
  • Like
Likes davenn, AlexCaledin, artis and 4 others
Engineering news on Phys.org
  • #2
I have no idea what they are. Some look like RF.

The top one is cool though, it almost looks like some kind of ASIC, love what I can only assume are data busses fanning out between who knows what they do blocks!

  • Like
Likes Andy Resnick
  • #3
Andy Resnick said:
Any info/guidance about these would be most appreciated! Thanks in advance...
It would help if you photographed the chip markings and terminals before disassembly, and provided a scale on the photos.
You have asked too many unnumbered questions.

The analysis of the substrate is difficult but you might be able to do a chemical spot test, or analyse / recognise the flame spectrum colour when it is burnt, maybe by an electric arc. You could measure a PN junction voltage, with a fragment in a curve tracer, like in a crystal set receiver.

Picture 1. Looks a bit like a RISC processor core, but with few control circuits, so I guess is probably a direct digital synthesizer. Digital inputs on the left, phase accumulator in the middle, then IQ, sine and cosine DACs on the right.
Picture 2. Could be huge arrays of small output transistors in parallel.
Picture 3. Too many possibilities. Hard to identify the terminals and connection points.
Pictures 4, 5. Maybe mosfet transistors.
Picture 6. Clearly an RF front end. Probably an IQ mixer. Built from tuned transmission lines above a ground plane, with transistors and mixer diodes.
Picture 7. The square spirals are inductors so it is an RF wireless interface. Maybe with arrays of RF transistors.

  • Like
Likes davenn, tech99 and Andy Resnick
  • #4
PLEASE, number at least the photos.

My guesses, for whatever they're worth.
Picture 2: Possibly a T/R Switch
Picture 3: A CPU
Picture 6: Now that @Baluncore mentions it, yeah, it fits
Picture 7: Agree again that the lower half is RF. The upper half could be Encoder/Decoder for the modulation. The two busses of 4 wires each at the top edge would be either Power/Ground, or RF output. (IIRC, Phones these days have multi-band capability.)

  • #5
Andy Resnick said:
Any info/guidance about these would be most appreciated! Thanks in advance...
Baluncore said:
It would help if you photographed the chip markings and terminals before disassembly, and provided a scale on the photos.

This, above all else, would have been great

Many IC datasheets can be found by simple googling the part number :smile:D

  • #6

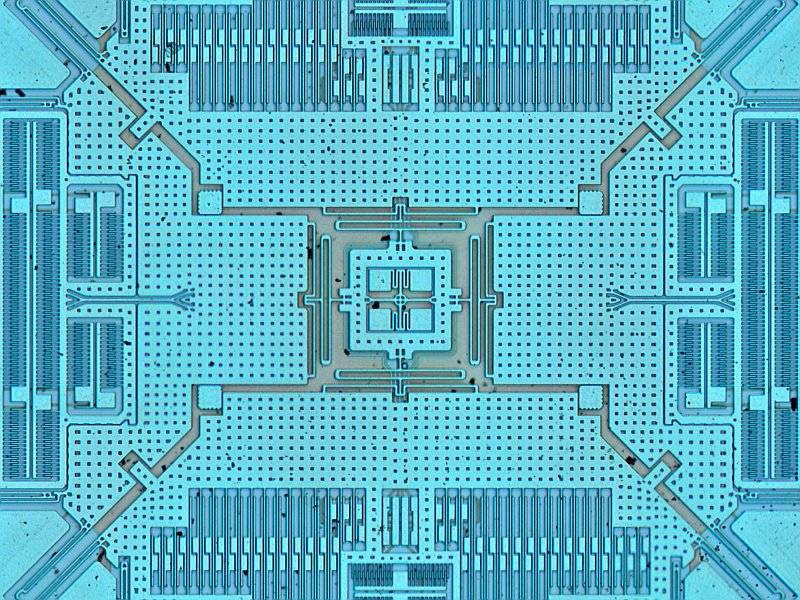

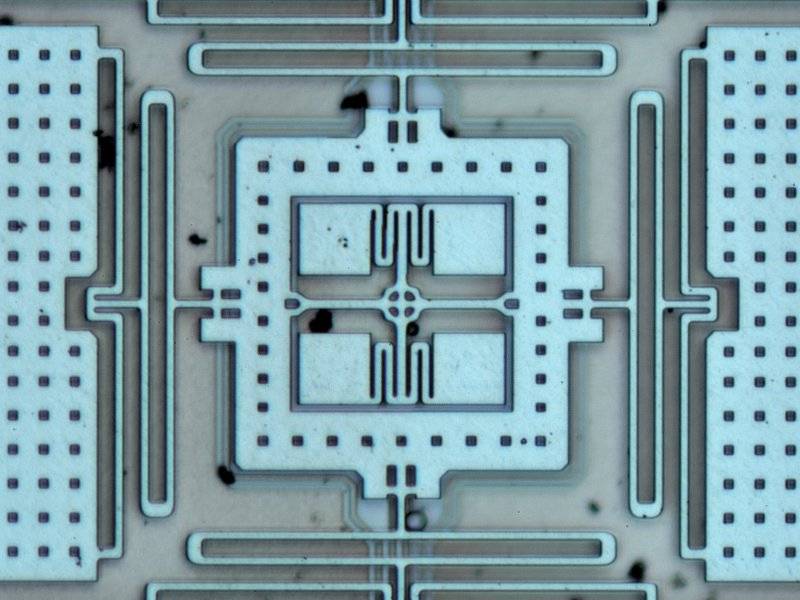

Don't know where else to post these images of the MEMS gyro:





Attachments

  • 613dfca6-f243-4df4-8de9-087051045bb5-original.jpg
    141.2 KB · Views: 316
  • 5d10fb9d-6ca0-4cc7-8d93-e49bfe030a36-original.jpg
    64.8 KB · Views: 300
  • Like
Likes davenn
  • #7
amazing technology :)


1. What is the purpose of decapsulating phone chips?

Decapsulating phone chips allows scientists to access and study the internal components of the chip, which can provide valuable insights and potential discoveries about the technology and its capabilities.

2. How is decapsulation performed?

Decapsulation is typically performed by using a combination of chemical and mechanical methods to remove the outer layers of the chip and expose the internal components.

3. What kind of discoveries can be made through decapsulating phone chips?

Decapsulating phone chips can reveal information about the design, functionality, and potential vulnerabilities of the chip. It can also provide insights into the manufacturing process and potential ways to improve the technology.

4. Are there any risks involved in decapsulating phone chips?

Decapsulation can be a delicate process and there is a risk of damaging the chip if not done properly. It is important to have the proper equipment, expertise, and safety precautions in place before attempting to decapsulate a phone chip.

5. How can the information gathered from decapsulating phone chips be used?

The information gathered from decapsulating phone chips can be used for research and development purposes, improving the technology, and potentially uncovering security vulnerabilities. It can also provide a better understanding of how the technology works and how it can be optimized for different applications.
