Homework Statement

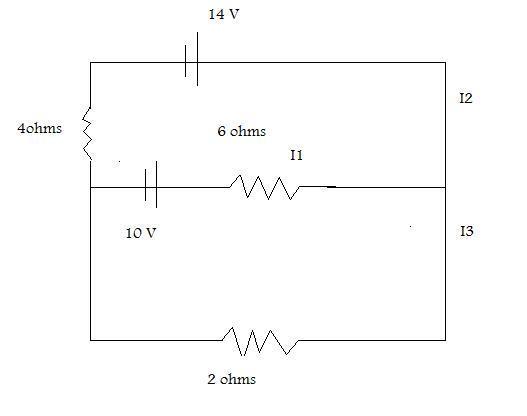

For the circuit in the picture, could somebody explain to me why the current on the upper left side of the circuit is the same as the current in the upper right ( I1)?
Why Is the Current the Same on Both Sides of the Circuit?
- Thread starter bcjochim07
- Start date
-
- Tags
- Circuit
In summary, a circuit is an electrical pathway that allows electricity to flow from a power source to a load, and it works by using conductive materials and components to create a continuous loop. The purpose of a circuit is to control the flow of electricity and allow electronic devices to function properly. Series circuits have all components connected in a single loop, while parallel circuits have multiple branches. The total resistance in a series circuit is the sum of individual resistances, and in a parallel circuit, it is calculated using Ohm's Law. To troubleshoot a circuit, check for loose connections, damaged components, and proper voltage from the power source.
For the circuit in the picture, could somebody explain to me why the current on the upper left side of the circuit is the same as the current in the upper right ( I1)?
- #2
bcjochim07
- 374
- 0
Any thoughts about this ?
- #3
thomate1
- 1,346
- 0
The reason for this is because of Kirchhoff's Current Law, which states that the total current entering a junction in a circuit must be equal to the total current leaving the junction. In this particular circuit, the current entering the junction on the upper left side must be equal to the current leaving the junction on the upper right side. This is because the two branches of the circuit are connected in series, meaning that the same current flows through both branches. Therefore, the current on the upper left and upper right sides must be the same (I1).
1. How does a circuit work?
A circuit is an electrical pathway that allows electricity to flow from a power source to a load, such as a light or motor. It works by using conductive materials, such as wires and components like resistors and capacitors, to create a continuous loop for the electricity to flow through.
2. What is the purpose of a circuit?
The purpose of a circuit is to allow electricity to flow from a power source to a load in a controlled manner. This allows electronic devices to function properly and perform their intended tasks.
3. What is the difference between series and parallel circuits?
In a series circuit, all components are connected in a single loop, which means the same amount of current flows through each component. In a parallel circuit, components are connected in multiple branches, which means the voltage stays the same across each branch but the total current is divided among the branches.
4. How do you calculate the total resistance in a circuit?
The total resistance in a series circuit is equal to the sum of the individual resistances. In a parallel circuit, the reciprocal of the total resistance is equal to the sum of the reciprocals of the individual resistances. This is known as Ohm's Law: R(total) = R1 + R2 + ... or 1/R(total) = 1/R1 + 1/R2 + ...
5. How do you troubleshoot a circuit that is not working?
First, check that all components are connected properly and that there are no loose connections. Then, use a multimeter to test for continuity and check for any damaged components. If needed, replace any faulty components. If the circuit is still not working, check the power source and ensure it is supplying the correct voltage.
