Redraw Circuit: Consolidate Nodes for Min #

Thread starter KillerZ
Start date Oct 4, 2009
Tags

Circuit

In summary, Redraw Circuit is a computer-aided design (CAD) tool that optimizes circuit design by simplifying and streamlining complex circuits. It uses algorithms to combine and consolidate nodes without affecting functionality, resulting in cost savings and improved performance and reliability. It is most effective for large and complex circuits and is typically used in later stages of circuit design. However, it should not be relied on as a replacement for proper design principles and techniques.

Oct 4, 2009

KillerZ

Homework Statement

Redraw the circuit consolidating nodes into the minimum number possible.

2. The attempt at a solution

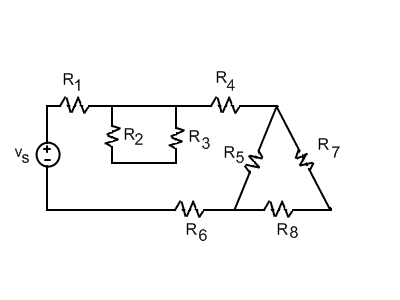

Here is what I drew:

Physics news on Phys.org

Oct 4, 2009

mikelepore

You shouldn't have deleted the connection from the {R2 parallel R3} to the R6. That would make it become a different circuit.

Oct 7, 2009

KillerZ

I changed it is this right?
