How to Simplify Resistor Networks: Parallel and Series Connections

Thread starter thiefjack
Start date Mar 26, 2012
Tags

Network Resistor

In summary, a reducing resistor network is a collection of resistors connected in a specific pattern to reduce the amount of voltage or current in a circuit. It works by dividing the voltage or current into smaller portions through series or parallel connections. This type of network is used to control voltage or current in a circuit for various applications. There are two main types: series and parallel, each with their own advantages. The values of resistors in a reducing resistor network can be calculated using Ohm's law.

Mar 26, 2012

thiefjack

Homework Statement

Homework Equations

Resistors in parallel and series

The Attempt at a Solution

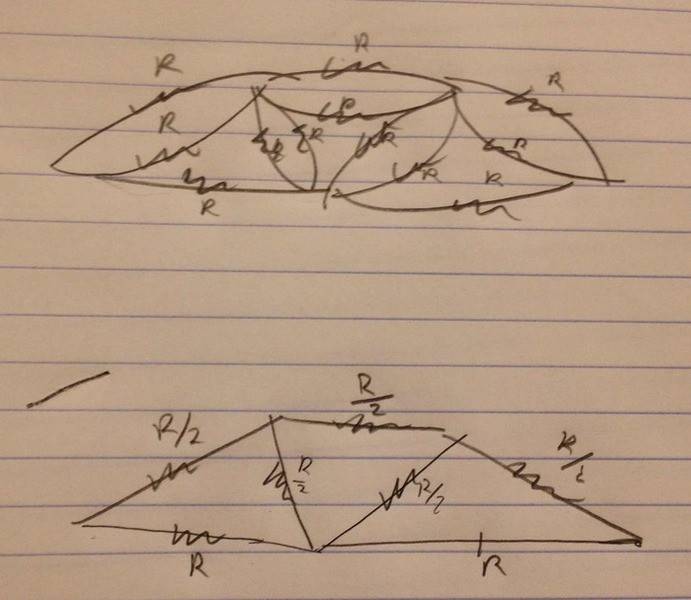

I connected points which had the same potential. I'm not sure where to go from here tho.

Last edited: Mar 26, 2012

Physics news on Phys.org

Mar 27, 2012

willem2

you didn't use the hint.
