Resultant forces

1. Homework Statement

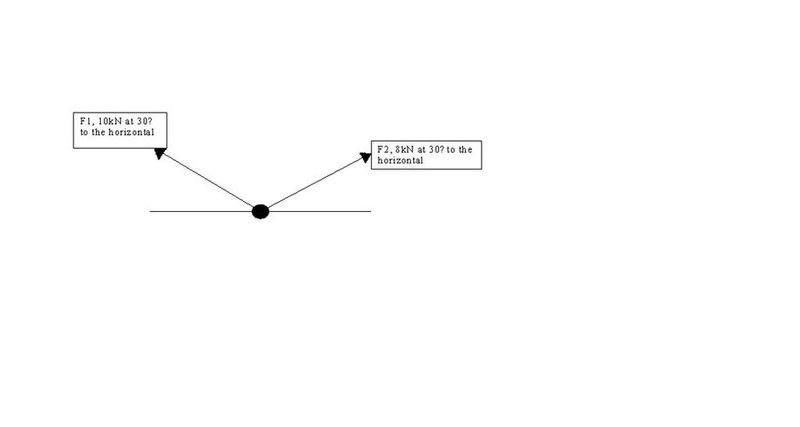

Use a suitable graphical method to determine the magnitude and direction of the resultant force acting the anchor point of two cables under tension as shown:

http://viewmorepics.myspace.com/index.cfm?fuseaction=user.editAlbumPhoto&albumID=1793679&imageID=24227865&MyToken=0cb4517b-8fb5-4f73-9f12-3d6a830070da

will have to save the image to your computer, it is to small to view on myspace.

im not asking anyone to solve my problem, just someone to help/explain how to work out the values for it.

Thanks
LiamFermoyle


Answers and Replies

It's been deleted or marked as private.

G*d d*mn it! it shouldnt be marked private. and iv just added the pic :S. ill try again

<a href="http://s301.photobucket.com/albums/nn60/LiamFermoyle/?action=view&current=untitled.jpg" [Broken] target="_blank"><img src="http://i301.photobucket.com/albums/nn60/LiamFermoyle/untitled.jpg" [Broken] border="0" alt="resultant force thing"></a>

Last edited by a moderator:

yeh. thats the diagram i was given to work with :S

458
0
Break both vectors into x and y vectors. Keep track of directions, add the x vectors together, and the y vectors together, and you have two sides of a right triangle. Connect the two vectors together with a line from tail to head and that is your resultant vector.

thanks dude. :P.

LF
