RLC Low-Pass Circuit: Find Current in Resistor

In summary, an RLC low-pass circuit is an electrical circuit that filters out high-frequency signals and passes low-frequency signals. It consists of a resistor, an inductor, and a capacitor arranged in a specific configuration. The circuit works by creating a high impedance at high frequencies and a lower impedance at low frequencies. The current in the resistor can be calculated using Ohm's law. The current in the circuit is affected by the components' values, frequency of the input signal, and load connected. To improve the circuit's performance, high-quality components, proper tuning, and additional filtering stages can be used. A higher-order RLC circuit can also improve the cutoff frequency and steepness of the frequency response curve.
  • #1
FermatPell
22
0

Homework Statement

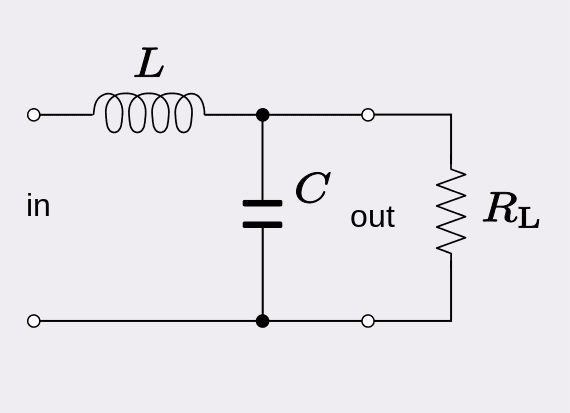

Find the current through the resistor in the following RLC low-pass circuit:

(there's an EMF missing on the left side, V=Vo cos(omega*t)

Homework Equations


Kirchoff's loop rule

The Attempt at a Solution


By using Kirchoff's loop rule and the junction rule, i get two differential equations. But I am stuck, can't solve them.

Physics news on Phys.org
  • #2
FermatPell said:
By using Kirchoff's loop rule and the junction rule, i get two differential equations. But I am stuck, can't solve them.


Show them why don't you ...


1. What is an RLC low-pass circuit?

An RLC low-pass circuit is an electrical circuit that is designed to filter out high-frequency signals and pass low-frequency signals. It consists of a resistor, an inductor, and a capacitor arranged in a specific configuration.

2. How does an RLC low-pass circuit work?

An RLC low-pass circuit works by using the properties of the inductor and capacitor to create a high impedance at high frequencies, which blocks the high-frequency signals from passing through. At low frequencies, the inductor and capacitor have a lower impedance, allowing the low-frequency signals to pass through.

3. How do I calculate the current in the resistor in an RLC low-pass circuit?

To calculate the current in the resistor, you will need to use Ohm's law, which states that current (I) is equal to voltage (V) divided by resistance (R). In an RLC low-pass circuit, the voltage across the resistor and the resistance value can be determined, allowing you to calculate the current using Ohm's law.

4. What factors affect the current in an RLC low-pass circuit?

The current in an RLC low-pass circuit is affected by the resistance, inductance, and capacitance values of the components, as well as the frequency of the input signal. Additionally, the type of load connected to the circuit can also impact the current.

5. How can I improve the performance of an RLC low-pass circuit?

There are several ways to improve the performance of an RLC low-pass circuit, including selecting components with high-quality parameters, properly tuning the circuit, and adding additional filtering stages. Using a higher-order RLC circuit can also improve the cutoff frequency and steepness of the frequency response curve.
