Simulation in TINA software

  1. Jul 19, 2015 #1

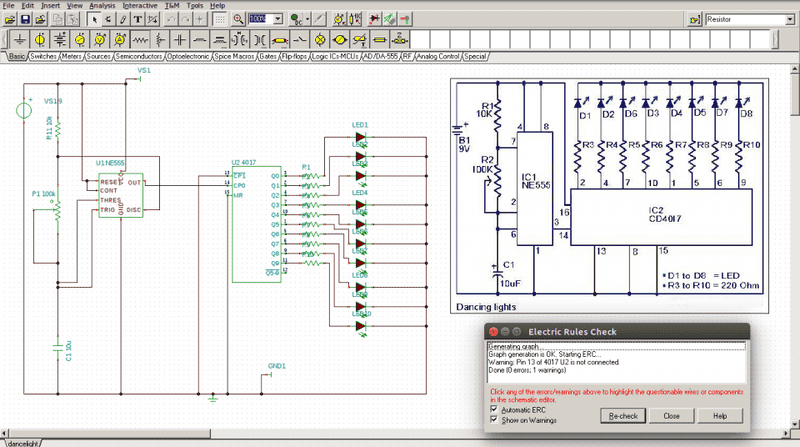

    I have TINA software and created a circuit "Dancing Light" but the circuit is not even working. Can anyone help me with this.?


    Attached Files:

  2. jcsd
  3. Jul 19, 2015 #2
    A description of what the circuit is intended to do as well as how the major sub-assemblies are expected to perform would be helpful.

  4. Jul 19, 2015 #3
    The circuit is intended to perform flashing LEDs one at a time. One LED will glow then next will glow and so on. the potentiometer is used to vary the speed of flashing of LEDs.. The 555 Timer is being used to feed the clock pulse to the decade counter CD4017...
