Sketching graph.

  1. Apr 17, 2010 #1
    1. The problem statement, all variables and given/known data

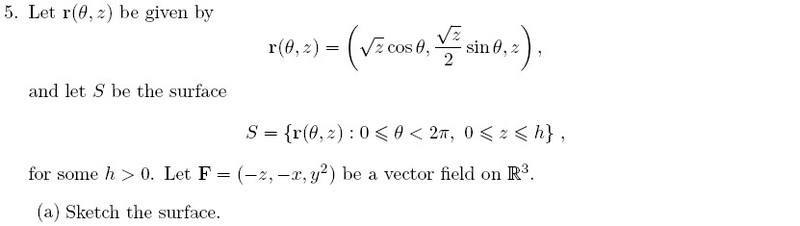

    Question attached

    2. Relevant equations



    3. The attempt at a solution

    I have no idea at all how to start this, I've plotted all 3 separated as x=, y= and z=, which gave me 3 different curves, would I then just join them together?

    any hint, tips would be much appareciated


    Attached Files:

    • q4.jpg
      File size:
      12.3 KB
      Views:
      103
  2. jcsd
  3. Apr 17, 2010 #2

    LCKurtz

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    [tex] x =\sqrt z \sin(\theta),\ y = \frac{\sqrt z} 2 \cos(\theta)[/tex]

    Hint: Multiply the second equation by 2, square both and add and see if that helps.

  4. Apr 19, 2010 #3

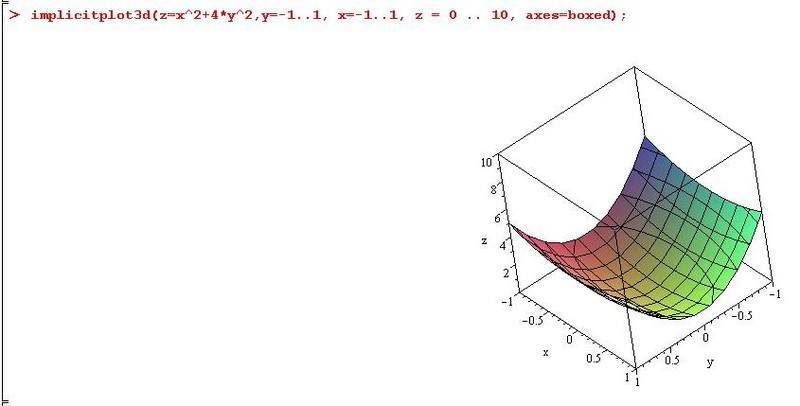

    yes! that has helped a lot, although when it came to plotting the equation, I was not sure about the domain of the graph. But this is what I got

    I assume since the question specifies that theta is between 0 and 2pi, the maximum allowable value for x-axis and y-axis is -1/1?

    As for the h, which is any number greater than 0, I just substituted an arbitrary point greater than 0.


    Attached Files:

  5. Apr 19, 2010 #4

    LCKurtz

    User Avatar
    Science Advisor
    Homework Helper
    Gold Member

    Try this code for a nicer plot,which might help you with your domain. I used h = 10 for an example:

    restart;
    h := 10;
    surface := [sqrt(z)*cos(theta), sqrt(z)*sin(theta), z];
    domain := [sqrt(z)*cos(theta), sqrt(z)*sin(theta), 0];
    plot3d({domain, surface}, theta = 0 .. 2*Pi, z = 0 .. h, style = patchcontour);
