Statics Problem...Please Help

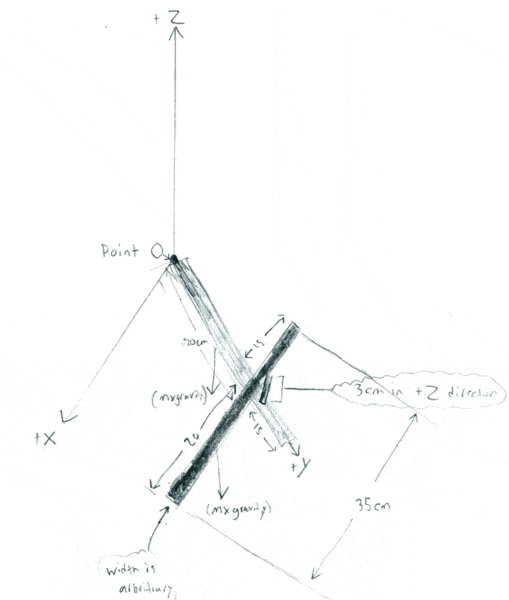

I have attached a sketch of a 3-d system. There are two rods of equal length (35cm) and equal mass. The masses are equal but unknown (mass of rod #1 = mass of rod #2). Please note that rod #2 is attached to rod one by a small connecting rod (3cm in length). Also note that the width of all rods is arbitrary. The question asks to sum the moments around point O & find the reactions of each rod.




I would really appreciate any input or advice on how to go about this problem. Thanks in advance.
