Tensile Stress

  • Thread starter Ialf
  • Start date
  • #1
2
0

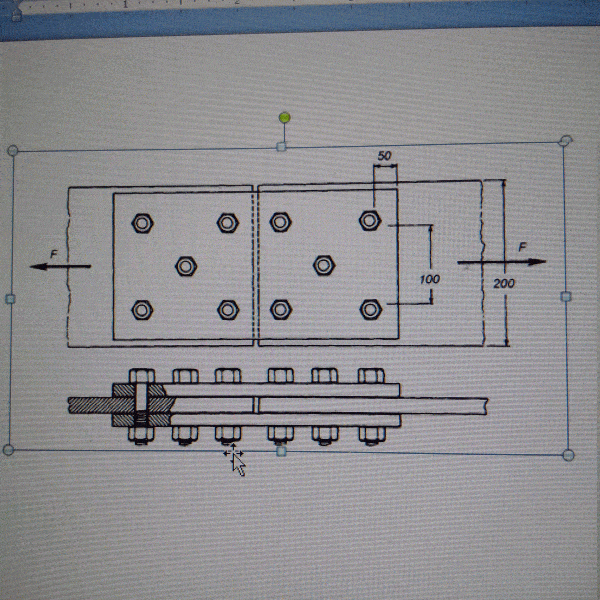

Determine the tensile stress in the bolted connection shown below for the load F = 210 kN. Using a safety factor of 2, determine whether the plates will fail or not if the yield strength of the plate material is 270 MPa and the thickness of the plate is 12 mm. The nominal diameter of the bolts is 10 mm and the clearance holes in the plate are drilled 10.5mm diameter. See attached diagram


Attachments

  • IMG_20150221_193633.gif
    66.8 KB · Views: 515

Answers and Replies

  • #2
SteamKing
Staff Emeritus
Science Advisor
Homework Helper
12,796
1,670
I'm sorry, but the Rules of PF ask you to use the HW Template when submitting posts to one of the HW forums.

The Rules also require that you make an attempt at a solution in order to receive help on a HW problem.
