clancy688
clancy688 is offline
#12781
Mar29-12, 06:35 PM
P: 546
Quote Quote by tsutsuji View Post
Having completed this translation, I have a question: what is the point of filling the penetrations between reactor building and turbine building with grout, as they tell us in that document ?
Um, I just asked myself "What's the point anyway?". As far as I understand, they're simply pouring water on the cores. But there's no closed circuit, so they're NOT pumping the water out. Or am I wrong and there IS some kind of return?
Because if there's not and they are stuffing the lower leaks, the water will simply rise up to the next leak. And then flow out again.

-----------------

On a different note: So they are pouring water on top of the damaged/molten fuel. Several tons an hour, since over a year. And all that water's flowing out into the basement, new water enters the containment, flows out, and so on. For over a year. Doesn't that necessarily mean that every single soluble radioactive particle which isn't still protected by a crust of molten fuel is gone, being distributed in the basement?
SteveElbows
SteveElbows is offline
#12782
Mar29-12, 06:36 PM
P: 630
Quote Quote by tsutsuji View Post
Having completed this translation, I have a question: what is the point of filling the penetrations between reactor building and turbine building with grout, as they tell us in that document ?

Would it not be enough to use a pump, and pump the water until the water level is lower than the lowest penetration (0.3 m above floor as in the large water tank test) ?
They might not have the spare contaminated water storage & processing capacity to want to drain the basement of reactor building that low at the moment.

I think its also possible that they do not want the water level in the torus room to fall below a certain level, in case the water is acting as shielding and cooling, in which case draining it would be a bad idea. Or perhaps they think it might affect the water level in the drywell somehow.

I don't even know how desperate they are to drain the turbine buildings, but as they have done this study I guess it is on the agenda.

They might also have other ideas for how to use this technology, e.g. to one day fill the torus room/plug suppression chamber leaks, if they are not afraid that anything that requires cooling or shielding is in the torus room.
cockpitvisit
cockpitvisit is offline
#12783
Mar29-12, 08:13 PM
P: 8
Quote Quote by tsutsuji View Post
Would it not be enough to use a pump, and pump the water until the water level is lower than the lowest penetration (0.3 m above floor as in the large water tank test) ?
Wouldn't the water then start flowing in the opposite direction through the penetration? The water level in all adjacent buildings would have to be lowered too. This could be very difficult due to the constant influx of groundwater in the turbine building basement.
biggerten
biggerten is offline
#12784
Mar29-12, 09:34 PM
P: 19
Quote Quote by tsutsuji View Post
Having completed this translation, I have a question: what is the point of filling the penetrations between reactor building and turbine building with grout, as they tell us in that document ?

Would it not be enough to use a pump, and pump the water until the water level is lower than the lowest penetration (0.3 m above floor as in the large water tank test) ?
Because they are going to fill the place with water, and they have to stop the leaks to do so. This is all part of the plan to eventually fill the torus, PCV, pedestal and RPV with water for shielding during fuel debris (corium) removal - in about 10 or 15 years.

See pages 51, 52 and 53 of the following - http://www.meti.go.jp/english/earthq.../111221_02.pdf

Step 3 on page 51.

And continued thanks for your remarkable contributions, tsutsuji. Please accept my heartfelt, warmest, and sincere appreciation.
westfield
westfield is offline
#12785
Mar30-12, 12:16 PM
P: 143
Quote Quote by MadderDoc View Post
I am trying to get at terms with the emission systems for these plants, and sit back with some questions:

Would it be correct to say that the large pipes which connect the reactor buildings 1+2, and reactor buildings 3+4 to the two stacks respectively, are meant for the normal mode ventilation of the reactor buildings -- while the venting of the primary containment, i.e the D/W and S/C vent operations involved during the accident progression, were meant to be routed to the stacks through other and smaller pipes?

Now, I get the impression of three sets of feed pipes to the exhaust stack. Firstly, there are the large tubes already mentioned, secondly, there are those smaller pipes we've been talking about in relation to high radiation at the 1+2 stack, and in connection with the hypothesis of hydrogen transfer from unit 3 to unit 4 (I've got the impression that these pipes represent what has been termed 'hardened vents')

Then thirdly, looking at the foot of the exhaust stacks, there appears to be on both of them yet another pair of pipes, of medium caliber, emerging from underground, and entering the foot of the stack from the north and south direction, So, I wonder what purpose those pipes serve?

Finally, directly attached to the NW corner of the reactor buildings are (were) separate stacks, delivering their exhaust just a few meter above the buildings. What would those exhausts be for?
I'm going off engineering drawings from US plants and reviews of lots of documents regarding these designs - someone in the industry can clarify this if required -

In regards to similar USA BWR plants (Oyster Creek \ Duane) - The buildings have "normal" HVAC systems, then the SGTS, then the hardened vent systems (There are other ventilation systems as well but they are minor\ are more plant specific). SGTS is not related to normal building ventilation or the "hardened" vent system. SGTS is a standby system only for purging containment for startup\shutdown or (minor) emergency use.

We know for sure the hardened vent system is a totally seperate system all the way to the stack. Early on (but post construction of this type of reactor unbelievably) it was found the SGTS would be inadequate and fail inside the RB during a high pressure venting scenario, filling it with steam and gases. So the hardened vent system was a retrofit to address this issue.

For others, some good insights on those systems and the accident in general in these two docs:

Role of BWR secondary containments in severe accident mitigation

Joseph Shephard - CalTech - The Crisis at Fukushima NPP (Sept 2011, some of it might be out of date but it's still worth a read


Re - pipes diving underground at base of stacks - without TEPCO drawings who knows. There are sump pumps in the base of the stacks so there would be some outlets for those to send to waste treatment although those ones look a bit large for that purpose. This is a drawing for the stack at Oyster Creek which indicates there are lots of connections to their plant stack.

( Who knows, there may be seperate lines to the stack for the "wet" & "dry" hardened vent lines although I've only seen drawings that contradict that.)




Re - exhausts on NW corners of Units 2,3,4 & 5 ("boxed in" on NW corner of U5 RB),
Unit 1 & 6 dont have it there but they but have a similar stack on the northside of their TB's. "Normal" building vent stacks (non SGTS) or are they steam exhausts?
Maybe someone can clarify which. US plant drawings show seperate (from the large stack) "normal" building stacks with their own filter train.



@ ZZero - The EDG's exhausts are right over on the eastern sides of the TB's on units 1-5 as the EDG's are in the TB's of units 1-5 (Apart from the retrofitted two air cooled EDG's for units 2 & 4 over in the common spent fuel building which were added in the '90's. For a few million more they could have put those two air cooled EDG's and their switchgear on the hill.......so much for SAM) , on unit 6 only you can see the EDG exhausts up the north side of the RB , the EDG's are in a building attached to the side RB 6 (however in another drawing they appear in the bridge building between RB 6 & it's TB but thats more the US style I believe) . Then to finish this for others benefit, U6 is unique at fukuichi in that it has three EDG's, one of the DG's is dedicated to powering HPCS, there is the seperate air cooled EDG north of Unit 6 which likely saved units 5 & 6 (from exploding at least))
Tepconium-311
Tepconium-311 is offline
#12786
Mar30-12, 04:30 PM
P: 16
Quote Quote by tsutsuji View Post
Having completed this translation, I have a question: what is the point of filling the penetrations between reactor building and turbine building with grout, as they tell us in that document ?

Would it not be enough to use a pump, and pump the water until the water level is lower than the lowest penetration (0.3 m above floor as in the large water tank test) ?
Other plausible reasons could be:
Technically Tepco tries isolating both basements.
Making two separate not-interconnected non-interacting water circuits makes sense.
Effects easily obtained:
Contaminants from R/B won't reach T/B anymore.
Possibility to prioritize on leaks in R/B.
Less groundwater contamination.
R/B protection from T/B salt water inflow.

P.S.: Thank you Mr. Tsutsuji-san! Excellent informative posts!
thebluestligh
thebluestligh is offline
#12787
Mar30-12, 04:42 PM
P: 11
Interesting scenes from TEPCO's video related to ocean monitoring of sea life in 20 km

http://photo.tepco.co.jp/en/date/201...20330-01e.html
Attached Thumbnails
scene01534.png   scene01682.png   scene01654.png
Yamanote
Yamanote is offline
#12788
Mar30-12, 05:49 PM
P: 68
Quote Quote by thebluestligh View Post
Interesting scenes from TEPCO's video related to ocean monitoring of sea life in 20 km

http://photo.tepco.co.jp/en/date/201...20330-01e.html
If you mean that plant, it's neither Daiichi nor Daini.
MadderDoc
MadderDoc is offline
#12789
Mar31-12, 02:17 AM
MadderDoc's Avatar
P: 698
Quote Quote by clancy688 View Post
Um, I just asked myself "What's the point anyway?". As far as I understand, they're simply pouring water on the cores. But there's no closed circuit, so they're NOT pumping the water out. Or am I wrong and there IS some kind of return?
Because if there's not and they are stuffing the lower leaks, the water will simply rise up to the next leak. And then flow out again.
I was asking myself similar questions. It makes sense only, if another outlet for the water fed in is provided. The water balance of the plant is not something I've followed closely, but I do remember reading repeatedly, that some of the water taken out from the current outlets are returned to the reactors. Early in the water clean-up operation, I got the impression that the water taken out from the T/B basements were divided: partly to be sent back to the reactors, partly to be processed by Sarry and stuff, as and if capacity was provided. Currently, my impression is that some of the processed water is being returned to the reactors.

-----------------
Quote Quote by clancy688 View Post
On a different note: So they are pouring water on top of the damaged/molten fuel. Several tons an hour, since over a year. And all that water's flowing out into the basement, new water enters the containment, flows out, and so on. For over a year. Doesn't that necessarily mean that every single soluble radioactive particle which isn't still protected by a crust of molten fuel is gone, being distributed in the basement?
It would seem that much of it has been distributed. However I think such a material would be subject to significant erosion, which would give way for continued dissolution.
Yikes :-), now you've got me wondering how the contamination of the water in the R/B basements compares to that of the T/B basements and further downhill.
Tepconium-311
Tepconium-311 is offline
#12790
Mar31-12, 03:36 AM
P: 16
Quote Quote by MadderDoc View Post
Currently, my impression is that some of the processed water is being returned to the reactors.
Seems correct.
Every TEPCO Daiichi plant status report contains this passage:
Quote Quote by TEPCO
Others
- At around 10:00 am on June 13, 2011, we started the operation of the circulating seawater purification facility installed at the screen area of Unit 2 and 3.
- At 8:00 pm on June 17, 2011, we started operation of Water Treatment Facility against the accumulated water. At 6:00 pm on July 2, we started the circulating injection cooling to inject the water, which was treated by the accumulated water treatment system, to the reactors through the buffer tank.
Simply check latest Tepco News to verify.
However this doesn't exclude other water or additives (boron) potentially being added to cooling water.

Quote Quote by MadderDoc View Post
Yikes :-), now you've got me wondering how the contamination of the water in the R/B basements compares to that of the T/B basements and further downhill.
Let's praise TEPCO for wise decision to isolate both basements from each other.
(see Tsutsuji's posts on previous page).
tsutsuji
tsutsuji is offline
#12791
Mar31-12, 04:55 AM
PF Gold
P: 1,220
Quote Quote by SteveElbows View Post
Or perhaps they think it might affect the water level in the drywell somehow.
I think there are two cases.

A) The leakage point is located lower than the present torus room water level

The leakage rate would depend on the difference of height between the drywell water level and the torus room water level. In this case, lowering the torus room water level would be a bad idea, because the leakage flow rate would increase, and this would affect the water level in the drywell (if the injection rate into RPV is kept constant).

B) The leakage point is located higher than the present torus room water level

The leakage rate would depend on the difference of height between the drywell water level and the leakage point. In this case, lowering the torus room water level would not affect the leakage rate nor the drywell water level.

So I think it would be good to install a water level gauge in the drywell, and perform the torus room drainage with an eye on the water level gauge. If the drywell water level starts decreasing, you know that you are in the wrong case and you must stop what you are doing. At least you learnt something : you learnt that you are in case A).

You may want to consider the present 60 cm above PCV bottom as a minimum that must be kept. To create a margin, you could increase the RPV injection rate until the drywell water level rises to 70 cm above PCV bottom.

If this water was not badly contaminated, you may have wanted to try to do the opposite: to raise the torus room water level, and see if it affects the drywell water level.
MadderDoc
MadderDoc is offline
#12792
Mar31-12, 05:42 AM
MadderDoc's Avatar
P: 698
Quote Quote by westfield View Post
<..>
We know for sure the hardened vent system is a totally seperate system all the way to the stack. Early on (but post construction of this type of reactor unbelievably) it was found the SGTS would be inadequate and fail inside the RB during a high pressure venting scenario, filling it with steam and gases. So the hardened vent system was a retrofit to address this issue. <..>
Thanks a lot for your input.

I am not sure the hardened vent is a totally separate system at these plants. From what Tepco has said, such retrofits were indeed made to the plants. Also it would seem implied by what Tepco has said, that these vent lines were used for the PCV ventings. However, Tepco has speculated that the Unit 1 PCV vent might have back-flowed into the Unit 1 R/B through its SGTS piping, causing the explosion. And Tepco has more than speculated that Unit3 PCV vent back-flowed into the Unit4 SGTS system. Either of these theories by Tepco implies that the PCV vent lines and the SGTS lines are not separate all the way to the stack, and it would be implied that the SGTS lines were either not protected by back-flow valves (seems to be the case of Unit 1) or the back-flow valve had failed open when power was lost (units 2-4). (All the SGTS systems were presumably operating per automation from shortly after the earthquake, and until power was lost.)
Attached Thumbnails
SGTS_piping_inside_exhaust_stack.png   Unit5_exhaust_stack_SGTS_piping_support.png
tsutsuji
tsutsuji is offline
#12793
Mar31-12, 06:24 AM
PF Gold
P: 1,220
http://www.meti.go.jp/earthquake/nuc...120328_02m.pdf Scattered debris survey plan (28 March 2012 mid-long term steering committee meeting)

[page 2]

Purpose

To perform a survey, checking whether debris spread by the hydrogen explosions are staying in the electric power plant premises.

Survey method

Explore regions of the premises starting at the center where units 1~4 are located, and going toward monitoring posts MP1~MP8. (As the first 500 m closest from center have already been explored and the debris there have been collected, they are excluded)

[page 3]

Definition of the debris that are the object of the survey

* Shape: solids (building rubble) like small stones or bigger that can be checked by visual observation
* Radioactivity, radiation dose: high radioactivity, high radiation dose objects that depart from background (BG)

Scattered debris determination standard

* When a debris is discovered, it is measured with a surveymeter (Geiger tube, ionization chamber). BG is also measured.
* If the measured value is higher than BG, the object is judged to be a scattered debris.

System

* Leader : 1 person, survey: 4 groups of 3 people (total 13 people)

Draft schedule

* 26 March 2012 ~30 March 2012 (2 April ~ 6 April is reserved in case of rain)

planned exposure

* Below 1 mSv/person.day

[page 4]

Fukushima Daiichi premises general layout map

Recording method
In case building debris scattered material is discovered, the discovery location is marked on a map. [Computing] the distance from units 2 and 3 reactor buildings with the premises layout map CAD system, the maximum scattering distance is measured and a map of the scattering area is generated.

[see also the map on page 4:]
red=plant boundary
yellow=scattered object survey directions
red dots=500 m range where scattering was confirmed
tsutsuji
tsutsuji is offline
#12794
Mar31-12, 09:26 AM
PF Gold
P: 1,220
http://www.meti.go.jp/earthquake/nuc...120328_02x.pdf Results of survey of debris distribution in spent fuel pool, unit 4 (28 March 2012 mid-long term steering committee meeting)

[page 2/8]
1. Survey of debris distribution in unit 4 spent fuel pool
same as http://www.tepco.co.jp/en/nu/fukushi...20312_01-e.pdf page 1

[page 3/8]
2. Outline of survey of debris distribution in unit 4 spent fuel pool
same as http://www.tepco.co.jp/en/nu/fukushi...20312_01-e.pdf page 2

[page 4/8]

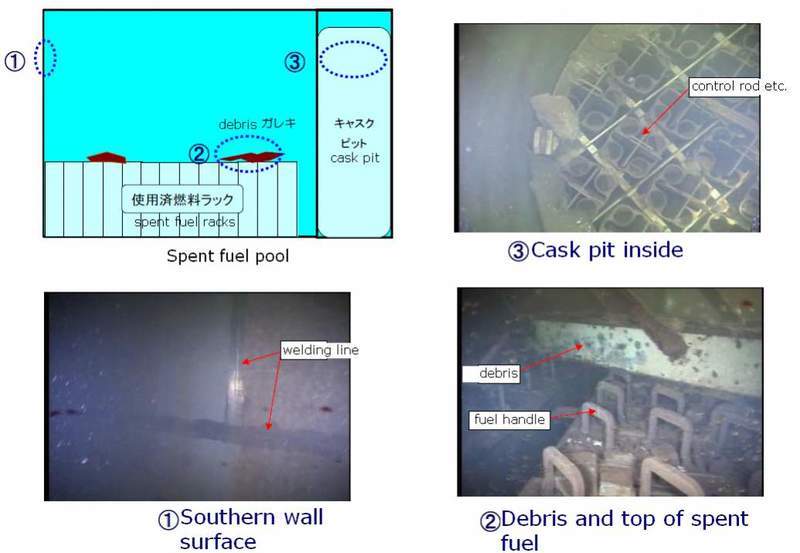

3. Result of survey of debris distribution in unit 4 spent fuel pool (19 ~ 21 March)

[page 5/8]
4. Outline of survey of debris at the bottom of unit 4's reactor
same as http://www.tepco.co.jp/en/nu/fukushi...20312_01-e.pdf page 2 except "(if
necessary, we will use ROV)" which was deleted.

[page 6/8]

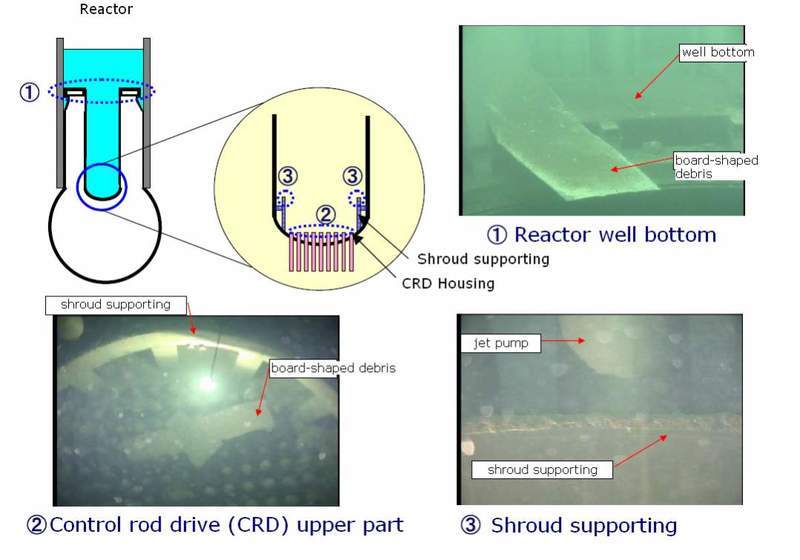

5. Result of the survey of debris at the bottom of unit 4's reactor
The diagram is the same as the one on http://www.tepco.co.jp/en/nu/fukushi...20312_01-e.pdf page 4

[page 7/8]
6. New transparency check inside unit 4 spent fuel pool (20 March)

1. Checking method
At almost the same location as the last time (9 February), using the same camera, the same wire and marks, the visibility distance is measured.

2. result
Visibility was comparable with that of February 9. Therefore, we conclude that there
has been no change in the degree of transparency.

[The diagram does not require a translation as it is almost the same as the one on http://www.tepco.co.jp/en/nu/fukushi...20210_03-e.pdf except that the man is now standing on the float, the fuel handling machine is not shown, and the spent fuel is not shown.]

[page 8/8]
7. Result of the transparency check inside unit 4 spent fuel pool (20 March)
same as http://www.tepco.co.jp/en/nu/fukushi...20322_02-e.pdf
Attached Thumbnails
unit4 pool page04.jpg   unit4 pool page06.jpg
tsutsuji
tsutsuji is offline
#12795
Mar31-12, 10:49 AM
PF Gold
P: 1,220
http://www.meti.go.jp/earthquake/nuc...120328_02d.pdf plant status (28 March 2012 mid-long term steering committee meeting) [only partial translation]

[page 1/6]

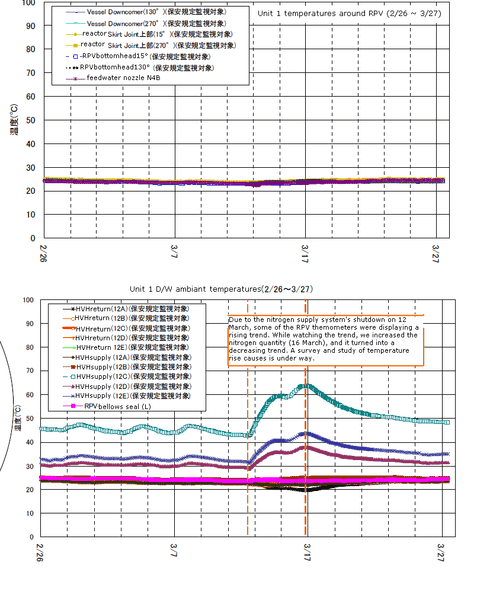

[A table displaying the plant parameters on 26 February and 27 March]

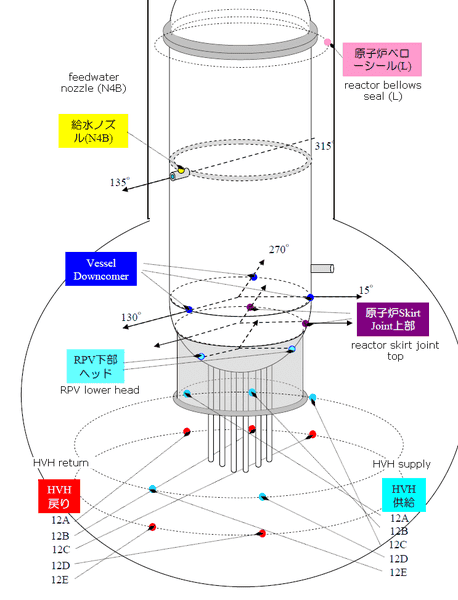

As unit 1, unit 2 and unit 3's PCV temperatures and RPV temperatures are around 25C ~ 55C (as of 27 March), there is no significant variation of RPV and PCV parameters such as the released radiation doses, and we judge that the cold shut down status is comprehensively maintained.

In order to maintain the measuring instruments' soundness in the future, while the surveillance with measuring instruments is continuing, a study toward diversification and implementation of alternative temperature surveillance means is under way.

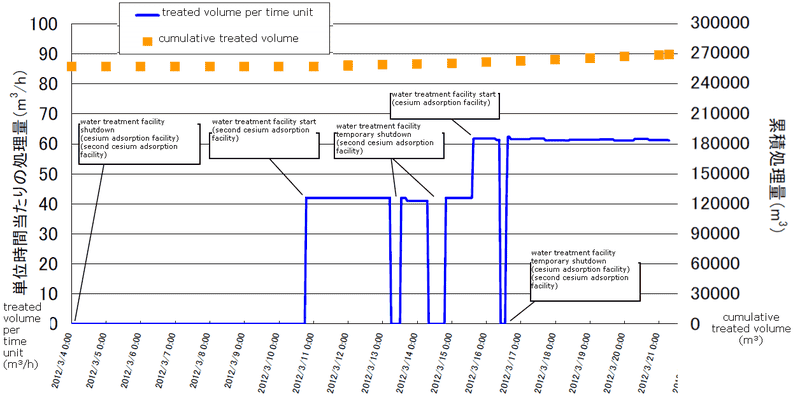

[page 2/6]


[page 6/6]
Attached Thumbnails
plant status page02a.png   plant status page02b.png   plant status page06.png
tsutsuji
tsutsuji is offline
#12796
Apr1-12, 10:36 AM
PF Gold
P: 1,220
http://weather.goo.ne.jp/earthquake/12040123040.html There was a magnitude 5.9 earthquake off the Fukushima coast on 1 April 2012 at 23:04 JST. JMA seismic intensity scale "5 minus" was recorded at Tomioka and Naraha, Fukushima prefecture. There is no tsunami risk.

http://www3.nhk.or.jp/news/html/2012...131781000.html The NISA said that no problem was reported from Fukushima Daiichi or Daini (in consequence of this earthquake). Monitoring post radiations are stable.
hellbet
hellbet is offline
#12797
Apr1-12, 11:02 AM
P: 10
Quote Quote by thebluestligh View Post
Interesting scenes from TEPCO's video related to ocean monitoring of sea life in 20 km
Background plant looks like Hirono Power Plant (Fuel + Coal Plant) which is 10 Km South of Daini and 20 Km South of Daiichi; the 2 largest units on the middle are 1000 MWe and others are 600 MWe.

http://toolserver.org/~geohack/geoha..._type:landmark

Dark smoke looks quite normal so Doom is off ;)
MadderDoc
MadderDoc is offline
#12798
Apr1-12, 01:43 PM
MadderDoc's Avatar
P: 698
The implementation of the common pipe to the stack from the SGTS and the hardened vent system includes a diving section just before the vent pipe enters the stack. It can be seen as a foo or a feature to have what is essentially a a water trap incorporated in such a system. On one hand it might provide additional scrubbing during a hardened vent procedure -- otoh it might also provide increased back-pressure, and increase the risk of diverting the flow of the vented gases back into the buildings through the SGTS system.
