Is it possible by using one or combination of more lenses to magnify the viewing area.

Attached Thumbnails
Phys.Org News Partner Science news on Phys.org
Scientists develop 'electronic nose' for rapid detection of C. diff infection
Why plants in the office make us more productive
Tesla Motors dealing as states play factory poker
Mech_Engineer
#2
Nov26-12, 11:00 AM
Sci Advisor
PF Gold
Mech_Engineer's Avatar
P: 2,248
What do you mean by a "large viewing area"? Given even a single lens you can achieve a magnified image, and odds are given a few constraints like yours you can use geometrical optics to find a pair of lenses that might work.

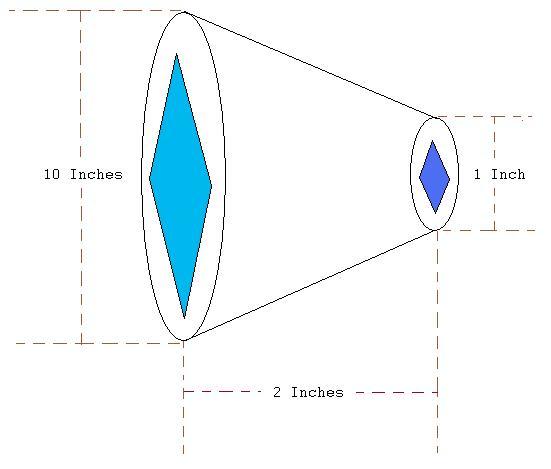

Edit: After taking a closer look at your diagram it's looking like you want to image a 10" dia. area down to 1" (10:1 magnification), but the overall object-image distance is only 2". This sounds like it's just not possible using real-world optics (even fresnel optics) given the incident angles involved.
