Voltage Controlled Constant Current Source

by drago2187
Tags: constant, controlled, current, source, voltage
Share this thread:
drago2187
#1
Sep25-09, 03:27 AM
P: 1
My project is to make a Voltage-Controlled Constant Current Source. I have found two solutions… This is first one

http://electronicdesign.com/Articles...ArticleID=9018

Problem is last sentence: For the circuit shown, a maximum current of 20 mA is feasible for a maximum load of 1100 Ω. using higher-voltage op amps and larger power transistors can increase these values if cost isn't a concern.
Cost is not much of a problem, but obtaining those components is hard in Croatia. So that solution is out of the game!!!

Second solution is this one and I will try to make it work

http://www.priorartdatabase.com/IPCOM/000007013/

I am new in electronics and I need help with choosing components for this circuit. This is my basic problem

Specifications are: Ic is constant and max 100 mA, that current is controlled by U1 and U2. The load is variable from 0.5k to 2 kΩ. Second amp will provide constant current because it is connected like Current Source with Floating Load and first amp will provide control voltage.

Circuit works as it should in multisim file is hire

http://adria.fesb.hr/~dgabelic/VCCS.ms9

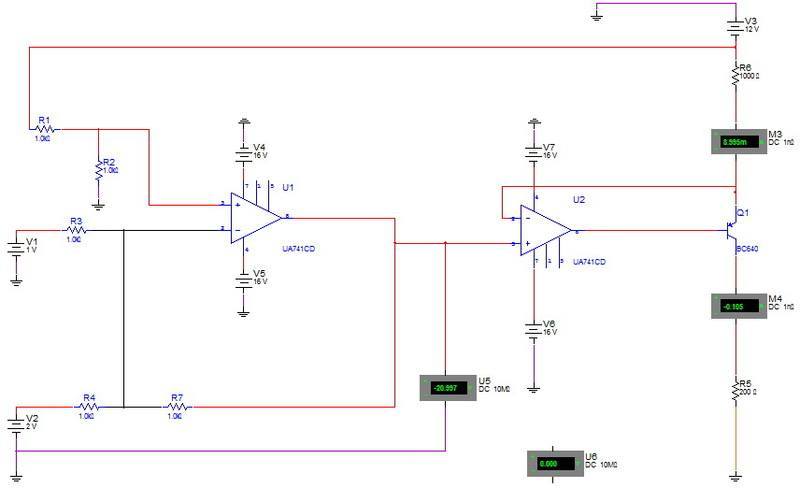

and the picture is in the attachment...

All help is more then welcome...
Attached Thumbnails
Phys.Org News Partner Engineering news on Phys.org
'Smart material' chin strap harvests energy from chewing
Lockheed Martin advances live, virtual, constructive training in flight test
Lockheed Martin conducts flight tests of aircraft laser turret for DARPA
berkeman
#2
Sep25-09, 06:51 PM
Mentor
berkeman's Avatar
P: 41,303
Quote Quote by drago2187 View Post
My project is to make a Voltage-Controlled Constant Current Source. I have found two solutions… This is first one

http://electronicdesign.com/Articles...ArticleID=9018

Problem is last sentence: For the circuit shown, a maximum current of 20 mA is feasible for a maximum load of 1100 Ω. using higher-voltage op amps and larger power transistors can increase these values if cost isn't a concern.
Cost is not much of a problem, but obtaining those components is hard in Croatia. So that solution is out of the game!!!

Second solution is this one and I will try to make it work

http://www.priorartdatabase.com/IPCOM/000007013/

I am new in electronics and I need help with choosing components for this circuit. This is my basic problem

Specifications are: Ic is constant and max 100 mA, that current is controlled by U1 and U2. The load is variable from 0.5k to 2 kΩ. Second amp will provide constant current because it is connected like Current Source with Floating Load and first amp will provide control voltage.

Circuit works as it should in multisim file is hire

http://adria.fesb.hr/~dgabelic/VCCS.ms9

and the picture is in the attachment...

All help is more then welcome...
Welcome to the PF. Coursework questions normally go in the Homework Help forums are of the PF, but for some projects, they can stay here in EE. I haven't decided yet whether to move this thread, but either way, you need to do the bulk of the work on it.

What is your main question exactly? If the simulation works, can't you just use the parts in the simulation, or is that whay you are saying that it is hard for you to get parts? What kind of opamps and transistors can you get?
