What software was used to plot this diagram of morse potential


by dkin
Tags: diagram, morse, plot, potential, software
dkin
dkin is offline
#1
Jan31-12, 05:21 PM
P: 5
Hi all,

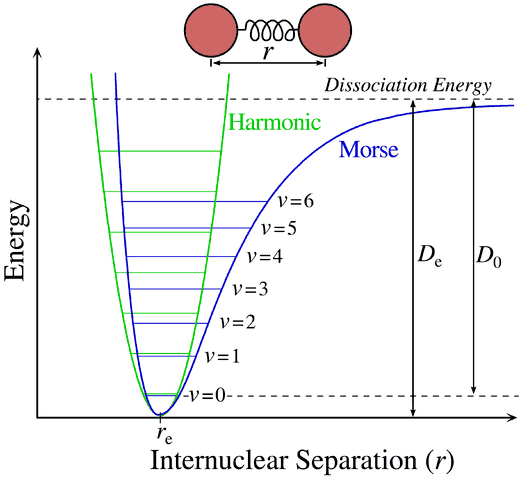

I recently saw a very nice diagram of the morse potential on wikipedia



I am curious if anyone has any suggestions as to how this diagram was made? What software package was used? In particular how the actual morse curve was plotted.
Phys.Org News Partner Physics news on Phys.org
Physicists design quantum switches which can be activated by single photons
'Dressed' laser aimed at clouds may be key to inducing rain, lightning
Higher-order nonlinear optical processes observed using the SACLA X-ray free-electron laser
bbbeard
bbbeard is offline
#2
Jan31-12, 08:21 PM
P: 192
Quote Quote by dkin View Post
Hi all,

I recently saw a very nice diagram of the morse potential on wikipedia



I am curious if anyone has any suggestions as to how this diagram was made? What software package was used? In particular how the actual morse curve was plotted.
Well, if I were to make this plot, I would use R. It could do everything on the plot fairly easily, with the exception of the spring in the dumbbell. I would do that in a drawing program, and take a screen shot and embed it in the R plot.
gsal
gsal is offline
#3
Feb1-12, 04:02 AM
P: 838
It's very do-able with matplotlib, too.
