Homework Statement


[/B]

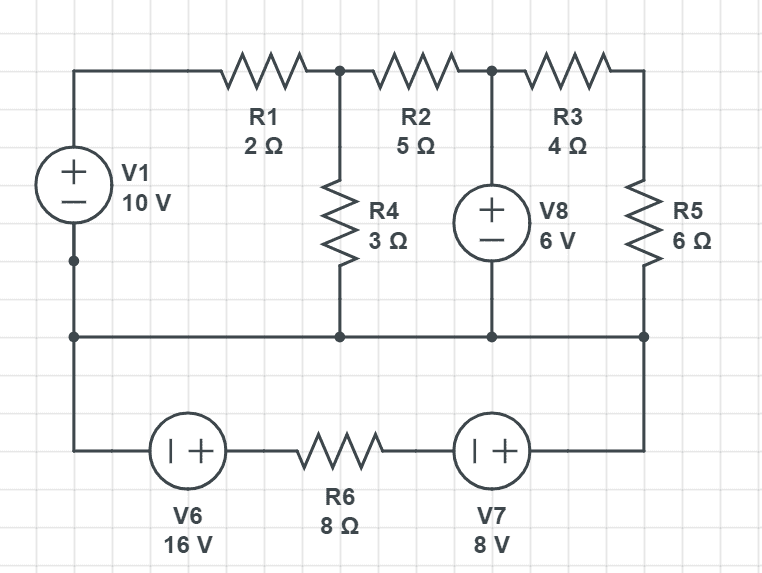

Use MATLAB to find the current flowing through 2Ω resistance

Homework Equations


-

The Attempt at a Solution


Here's my work :

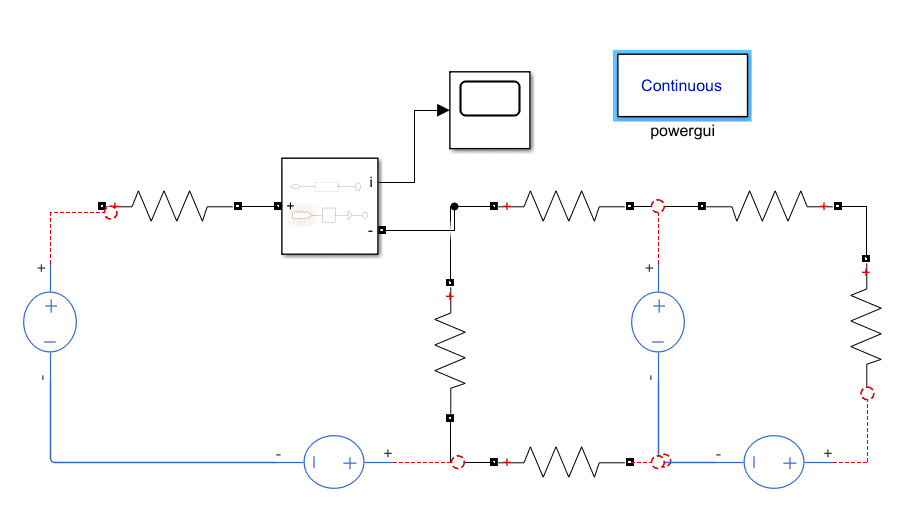

The DC voltage sources won't connect to the resistances , I get a red dotted line.
Where am I doing wrong ?
Your help is appreciated .


Attachments

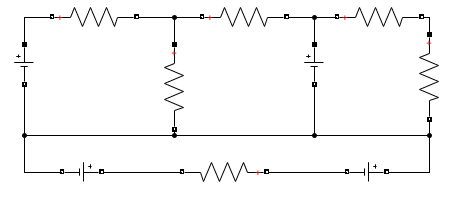

  • 2.png
    9 KB · Views: 658
  • 1.png
    8.2 KB · Views: 712
Physics news on Phys.org
  • #2
It is quite late, but I will help somehow. You had chosen two different libraries. So if you want to use both, you should find a 'converter', otherwise just keep your project in one library, as I did. It
