A Measuring Device

Pictures this week must have, as the main subject, a measuring device. This can be as simple as a ruler, a weight scale, a speedometer, all the way to an electron analyzer and the ATLAS detector at the LHC. Any device that actually gives you a quantitative value of something is a valid device.

To prevent me from chasing you and asking you to clarify the device in your photo, please include a brief description of it if it is an unusual device.

Zz.

Contest Rules:

1. Any digital photo or digitally-scanned photo relevant to the theme will be accepted within the contest period. In case there's a gray area, or you're not sure if the picture is suitable, check with me first.

2. Please resize your digital photo to no more than 800 x 600 or 600 x 800 pixels. You may also crop your picture if you wish. You are also allowed to adjust the brightness and contrast of your picture but these should not dramatically alter the look of the picture. But other than those, any form of picture editing or modification is not allowed. This is a photo contest, not a picture editing/special effect contest. You may add a watermark or your name/nickname to the photo for identification purposes.

3. Upload your photos to any of the photo servers such as imageshack or photobucket. Then post it the relevant contest thread and link your picture using the img command. PM me if you do not know how.

4. Only ONE picture per member per contest. Once a picture is posted, it cannot be changed other than a total withdrawl by that member from that week's photo contest. Exceptions will be made for modification to comply with the rules, such as resizing.

5. At the end of the contest period, I will open a poll and every PF member can vote for the picture they like best.

6. Note that in case we have a large number of entries, I will do the polling in more than one thread. If that's the case, you can vote in each of the polling threads. The photos will be assigned in the polling threads in the order they were submitted.

7. The photo of the subject must be something that you took directly, not via in intermediary medium, and not taken by someone else. Unless otherwise noted, a photo of another photo, painting, print, etc. does not qualify.

8. You can use a picture only once. Once it is used in a contest, it cannot be reused in another contest.

9. Please post only pictures meant for submission in this thread. Photos not meant for submission must not be posted in the contest thread. Posting of more than one photos by a member may result in an automatic disqualification from the week's contest.

Zz.

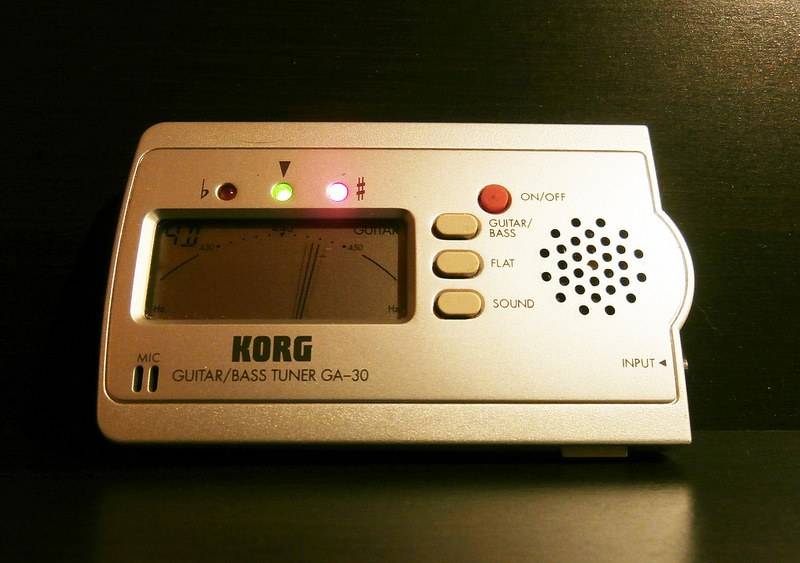

Silver Korg GA-30 guitar/bass tuner on a dark surface, with an LCD display showing a tuning needle, indicator LEDs, and ON/OFF, GUITAR/BASS, FLAT and SOUND buttons.

(An electronic tuner)

I think it is an unusual device, but it's in your list ;).

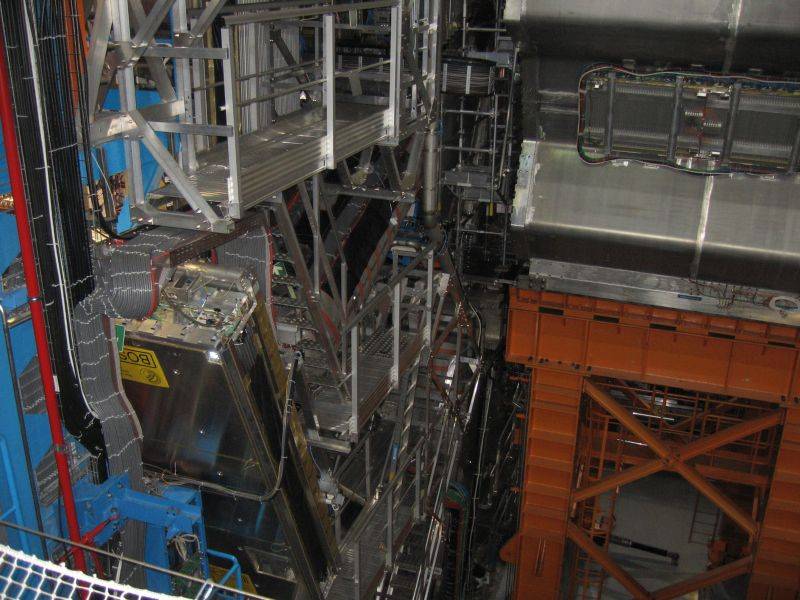

ATLAS during the long shutdown 2013-2014, partially opened for maintenance.

Photo of the interior of a large particle detector with metal scaffolding, platforms and cable trays, and an orange steel frame in the foreground during maintenance.

  • Like
Likes   Reactions: jtbell and DennisN

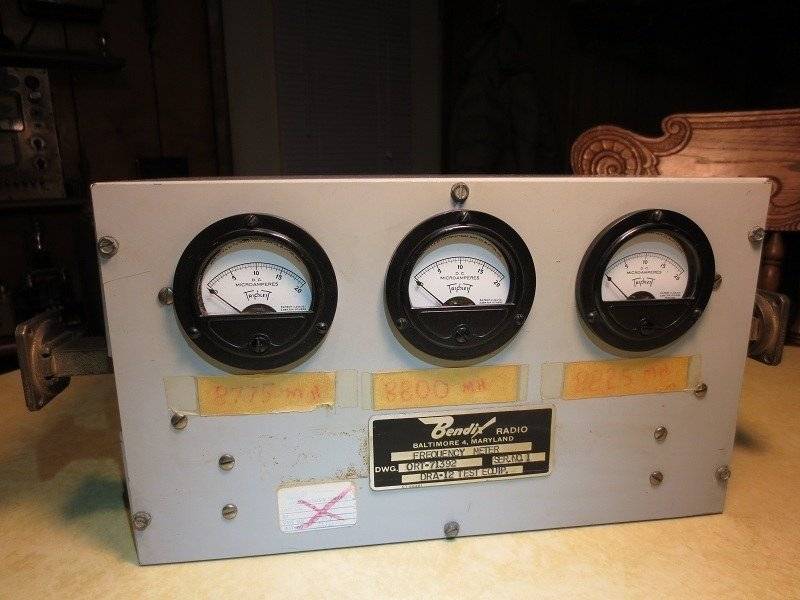

8800 ± 25 MHz Bendix frequency meter.

Grey metal panel with three analog meters labelled in microamperes, each with a yellow tape label, and a Bendix Radio frequency meter nameplate beneath them.

  • Like
Likes   Reactions: Borek

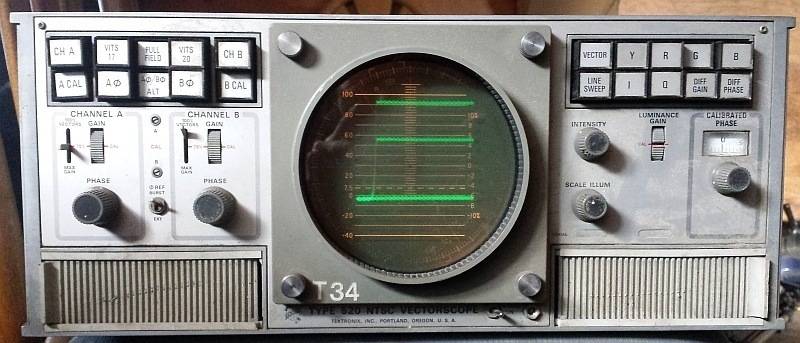

Here's mine.. I was hoping to be able to convert it from an NTSC vectorscope to a standard scope, but I don't think that'll happen.. Oh well, it was cheap.. Circa 1964 I think?

Front panel of a Tektronix Type 520 NTSC vectorscope, with a round green-lit CRT display showing horizontal bars, channel A and B gain and phase knobs, and a row of labelled pushbuttons.

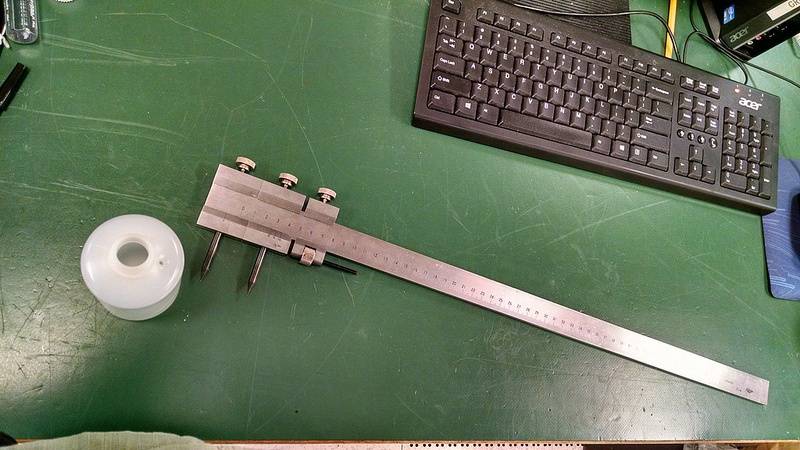

Isn't that more of a precision scribe than an caliper? My Mitutoyo calipers just packed it in after 10 years (and I got them used)... I used them as scribes a whole lot

  • Like
Likes   Reactions: nsaspook
A Kelvin probe. It measures the contact potential difference between the tip and the sample. If you know the work function of the tip, then you directly measure the work function of the sample.

Photo of a laboratory apparatus inside a vacuum chamber: a small brown cylindrical probe tip on a metal rod, a copper block mounted on a steel tube, and a silver-coloured metal housing on the left.


Zz.

  • Like
Likes   Reactions: dlgoff
