What Is the Triggering Moment for Turbine Safety Devices in a 4-Link Mechanism?

  • Thread starter Thread starter mech123
  • Start date Start date
Click For Summary
SUMMARY

The discussion focuses on determining the triggering moment for safety devices, specifically the friction lever and shear pin, in a turbine's 4-link mechanism. These devices act as torque limiters, breaking under excessive load to prevent damage. The user identifies the problem as a nonlinear dynamic issue requiring multibody dynamic analysis to ascertain load distribution throughout the pin lever assembly. The goal is to redesign the assembly for enhanced safety.

PREREQUISITES
  • Understanding of multibody dynamic analysis techniques
  • Familiarity with nonlinear dynamics in mechanical systems
  • Knowledge of torque limiter mechanisms and their applications
  • Basic principles of rigid body motion
NEXT STEPS
  • Research multibody dynamics software tools such as Adams or Simpack
  • Study nonlinear dynamics and its applications in mechanical design
  • Explore torque limiter design principles and safety device standards
  • Review case studies on load distribution analysis in mechanical assemblies
USEFUL FOR

Mechanical engineers, safety device designers, and professionals involved in turbine design and analysis will benefit from this discussion.

mech123
Messages
2
Reaction score
0
How to solve this problem? Help me please

Hi All,

A I got a nice project to do there is a safety device in turbine called Friction lever and shear pin which acts like a torque limiter ,that is the shear pin breaks when the excessive load is acting on the system.[The friction device which is connected to a guide vane detaches when there is excessive load in the guide vane of turbine].The geometry of model is exactly like a planar 4 link mechanism.with rotations possible at fixed pins
the objective is to find the triggering moment acting on both the devices.to find the load distribution through out the pin lever assembly and there by redesign the assembly for a safe region.
Can you advice this belong to which category and how to solve?
By my understanding is a nonlinear dynamic problem with rigid body motion so that we have to perform a multibody dynamic analysis to get the load distribution.please help me

Engineering news on Phys.org

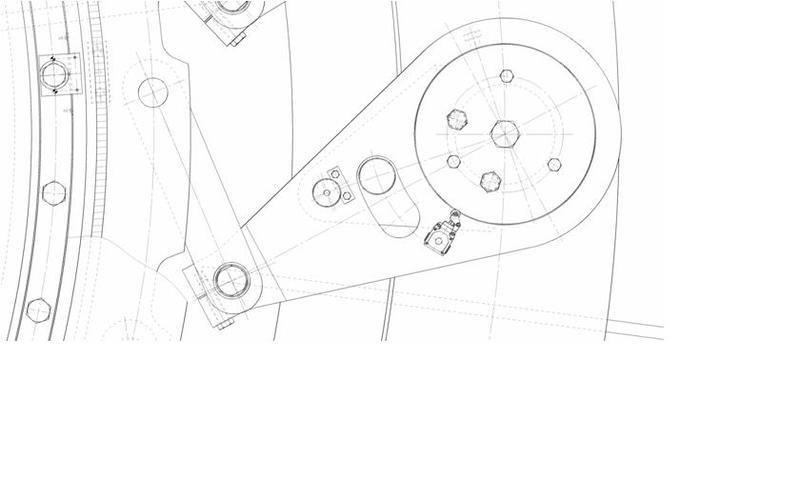

Can you show a diagram?


Attachments

  • untitled.JPG
    23.7 KB · Views: 434
