free body diagram help


by bobmarly12345
Tags: body, diagram, free
bobmarly12345
bobmarly12345 is offline
#1
Apr15-12, 08:47 AM
P: 27
1. The problem statement, all variables and given/known data

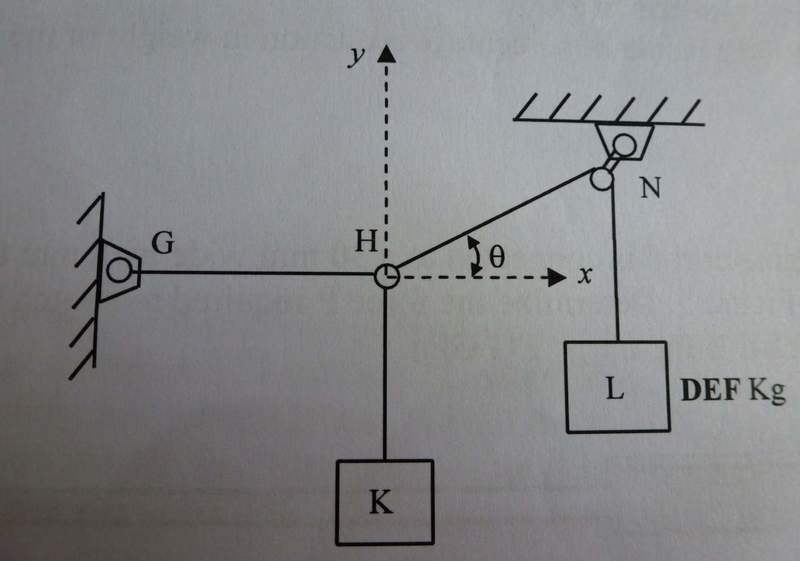

can anyone show me what the free body diagram of this would look like?
Thankyou
Attached Thumbnails
Phys.Org News Partner Science news on Phys.org
SensaBubble: It's a bubble, but not as we know it (w/ video)
The hemihelix: Scientists discover a new shape using rubber bands (w/ video)
Microbes provide insights into evolution of human language
SammyS
SammyS is offline
#2
Apr15-12, 12:21 PM
Emeritus
Sci Advisor
HW Helper
PF Gold
P: 7,418
Quote Quote by bobmarly12345 View Post
1. The problem statement, all variables and given/known data
can anyone show me what the free body diagram of this would look like?
Thank you
For which body do you want the Free Body Diagram? ... mass K, mass L, the pulley at N, or the junction of the cables at H
bobmarly12345
bobmarly12345 is offline
#3
Apr15-12, 12:31 PM
P: 27
well the question asks me to work out the mass of K

HallsofIvy
HallsofIvy is offline
#4
Apr15-12, 12:46 PM
Math
Emeritus
Sci Advisor
Thanks
PF Gold
P: 38,898

free body diagram help


There are three forces acting at H. First there is a horizontal force acting toward point G. Second, there is a vertical force due to the weight of K. Third there is a force toward point N. The magnitude of the downward force is, of course, mg. The magnitude of the force toward N is the same as the weight of the mass at L. Decompose the force toward N into its horizontal and vertical components.
