ANSYS: How to interpret this remote force on a spiral disk?

Click For Summary
SUMMARY

The discussion focuses on interpreting the application of a remote force on a spiral disk in ANSYS simulations. Users explore two scenarios based on which set of holes (inner or outer) are bolted: Case 1, where the outer holes are fixed, results in maximum deformation at the center and minimum at the edges, while Case 2, with inner bolts fixed, shows maximum deformation at the edges and minimum at the center. The participants recommend replicating the geometry without spirals to better visualize the deformation patterns.

PREREQUISITES
  • Understanding of ANSYS simulation software
  • Knowledge of load application and boundary conditions in structural analysis
  • Familiarity with radial deformation concepts
  • Basic grasp of diaphragm behavior in mechanical structures
NEXT STEPS
  • Explore ANSYS remote force application techniques
  • Learn about boundary conditions in ANSYS simulations
  • Research diaphragm behavior in mechanical engineering
  • Practice modeling geometries in ANSYS without complex features like spirals
USEFUL FOR

Mechanical engineers, simulation analysts, and students learning about structural analysis in ANSYS who are interested in understanding load distribution and deformation in complex geometries.

Anam.Rizvi
Messages
2
Reaction score
0
Hi!


I am new to ANSYS and I am trying to understand a simulation done by some one else.
I have a disk with a spiral in it, and it looks like there is a remote force being applied at the centre of the disk, but spread over the entire face.
I don't understand how this force is being spread over the entire face of the disk because the edge is bolted down, and only the centre can go to full travel.
Basically, I need to know if the force is truly a load acting over the entire face of the disk, or if it is just acting at the centre and pulling the inner diameter face with it.

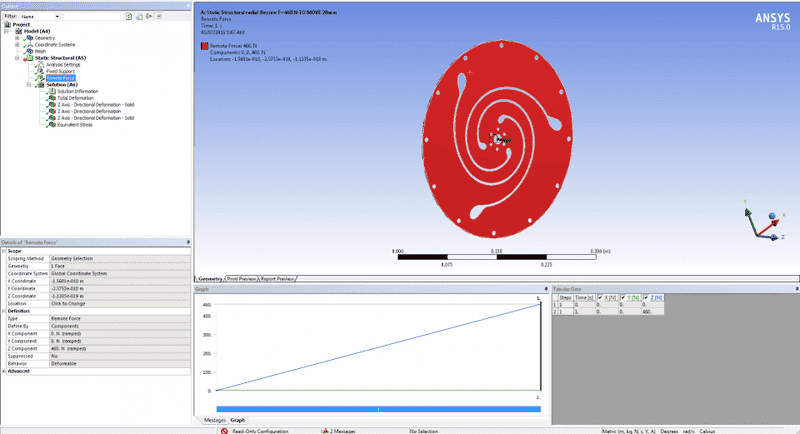

I have attached a picture of the force on the disk.

Any help is appreciated,
Thank you!


Attachments

  • Flexure Stress, Centre Force, During Travel of 20 mm (force).png
    Flexure Stress, Centre Force, During Travel of 20 mm (force).png
    40.3 KB · Views: 871
Engineering news on Phys.org
can u explain which set of holes are bolted/fixed (the inner 6 in number or outer 12 in number)

Case one: outer fixed, in that case it will behave like a diaphragm. Edges being fixed, your central areas would displace.Although force acts on the whole surface, your deformation will change radially. It will be max at center and min (zero) at edges.

Case 2: Inner bolts fixed. In this case again your deformation will be radial. But you will have max deformation at periphery/edges and min(zero) at center

try making the same geometry without the spirals, replicate everything else and see what results you get. It will help you imagine better

RKD89 said:
can u explain which set of holes are bolted/fixed (the inner 6 in number or outer 12 in number)

Case one: outer fixed, in that case it will behave like a diaphragm. Edges being fixed, your central areas would displace.Although force acts on the whole surface, your deformation will change radially. It will be max at center and min (zero) at edges.

Case 2: Inner bolts fixed. In this case again your deformation will be radial. But you will have max deformation at periphery/edges and min(zero) at center

try making the same geometry without the spirals, replicate everything else and see what results you get. It will help you imagine better

Yes I understand ! Thank you!
