Checking calculations for 30V circuit with series and parallel resistors

2 replies · 2K views · last reply
j doe
Messages
37
Reaction score
2

Homework Statement

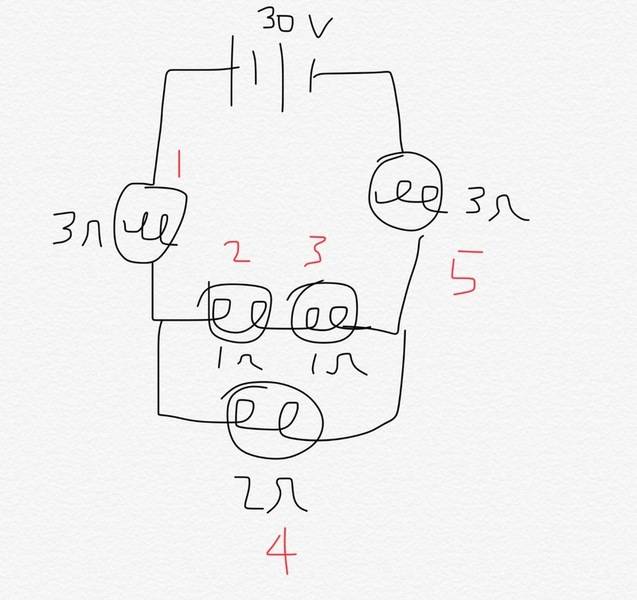

Hand-drawn circuit schematic with a 30 V battery on top and resistors labelled 3 ohm, 1 ohm, 1 ohm, 2 ohm and 3 ohm, numbered 1 to 5 in red.

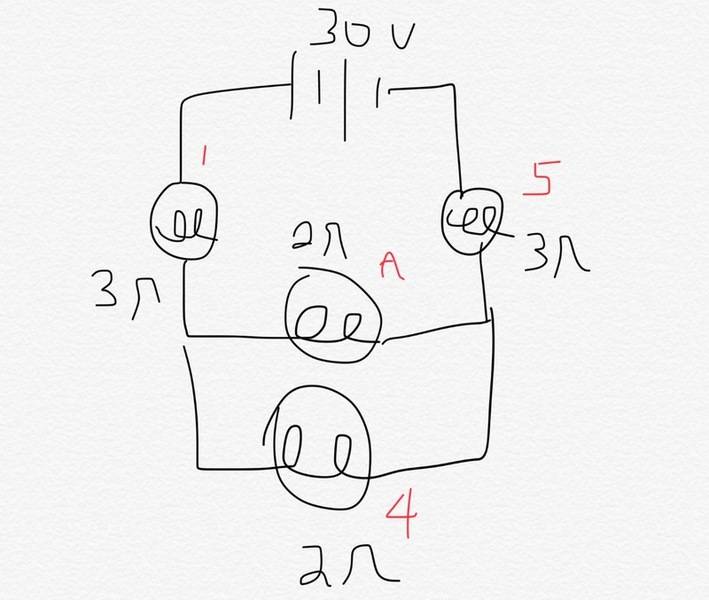

Hand-drawn circuit schematic with a 30 V battery on top; resistors labelled 3 ohm, 2 ohm, 3 ohm and 2 ohm, with red labels 1, 5, A and 4 beside them.

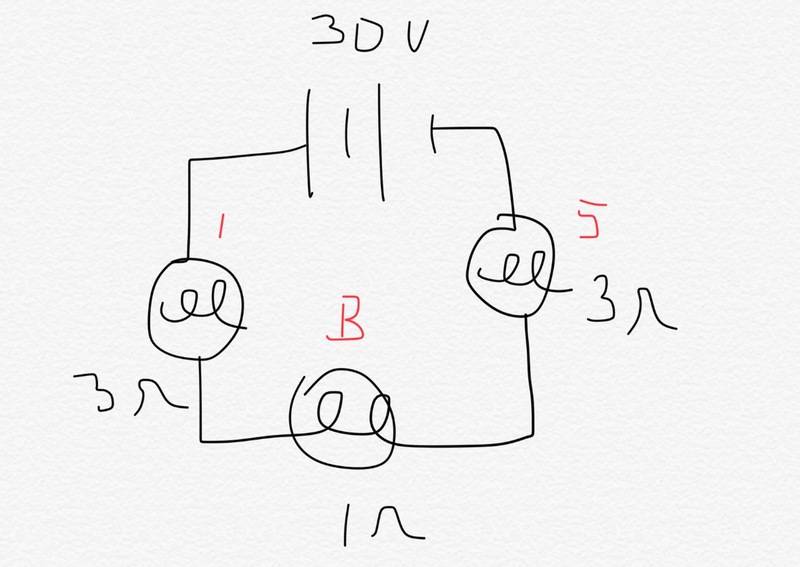

Hand-drawn circuit schematic with a 30 V battery at the top, resistors of 3 Ω on the left, 1 Ω at the bottom and 3 Ω on the right, with points labelled 1, 5 and B in red.

Homework Equations

The Attempt at a Solution


Vt=30V
It=4.3A
Rt=7Ω

V1=12.9V
V2=2.15V
V3=2.15V
V4=4.3V
V5=12.9V
VA=4.3V
VB=4.3V

I1=4.3A
I2=2.15A
I3=2.15A
I4=2.15A
I5=4.3A
IA=2.15A
IB=4.3A

R1=3Ω
R2=1Ω
R3=1Ω
R4=2Ω
R5=3Ω
RA=2Ω
RB=1Ω

Did I break down the problem correctly? And are all these calculations correct?

j doe said:

Homework Statement


Hand-drawn circuit schematic with a 30 V battery on top, a 3 ohm resistor on the left and a 3 ohm resistor on the right, two 1 ohm resistors in the middle branch, and a 2 ohm resistor at the bottom, with red numbers 1 to 5 marking nodes or branches.

Handwritten circuit diagram of a 30 V battery with resistors labelled 3 ohm, 2 ohm, 3 ohm and 2 ohm, plus red numbers 1, 5 and 4 and a red letter A marking branches and nodes.

Hand-drawn circuit diagram with a 30 V battery at top, a 3 Ω resistor at left, a 1 Ω resistor at bottom and a 3 Ω resistor at right, connected in a single loop with red labels 1, 2 and 3.

Homework Equations

The Attempt at a Solution


Vt=30V
It=4.3A
Rt=7Ω

V1=12.9V
V2=2.15V
V3=2.15V
V4=4.3V
V5=12.9V
VA=4.3V
VB=4.3V

I1=4.3A
I2=2.15A
I3=2.15A
I4=2.15A
I5=4.3A
IA=2.15A
IB=4.3A

R1=3Ω
R2=1Ω
R3=1Ω
R4=2Ω
R5=3Ω
RA=2Ω
RB=1Ω

Did I break down the problem correctly? And are all these calculations correct?
It looks reasonably good, but electrical currents do have a direction=normally you mark the direction with an arrow and if the current goes opposite to the arrow, it is then a negative current. Also, the voltages you have are voltage drops across the resistors. Often the question will be what is the voltage at a point in the circuit, and in order to do this, a point in the circuit (e.g. the "-" terminal of the voltage source) will be designated as the "V=0" or "ground" point. Then the "+" terminal of the battery will be V=+30 V, and the voltages at other locations are determined from the voltage drops. All in all, you did reasonably good.
