Manual frequency tuning of a sapphire resonator

  • Thread starter Thread starter yefj
  • Start date Start date
AI Thread Summary
A sapphire resonator operating at 10.24 GHz can be manually tuned to 14.5 GHz using several methods without altering its outer diameter. Solutions include placing a metallic tuning screw near the resonator to adjust the evanescent field, using a movable high-permittivity dielectric to modify effective permittivity, or applying controlled pressure to induce strain in the sapphire. Doping the sapphire and applying a DC magnetic field can also provide frequency adjustments through the Faraday effect. The discussion highlights the importance of precise placement and adjustment techniques for effective tuning. Effective manual tuning is achievable with careful implementation of these methods.
yefj
Messages
58
Reaction score
2

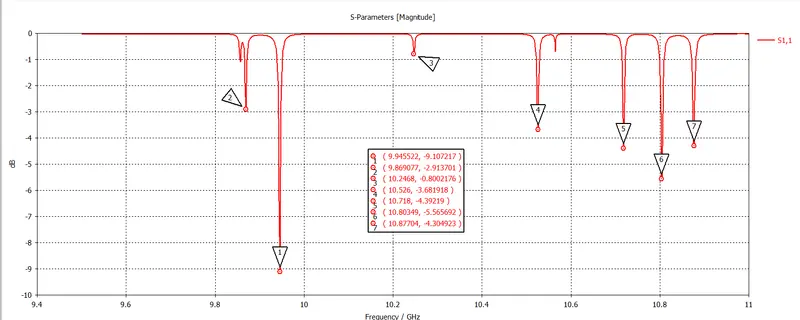

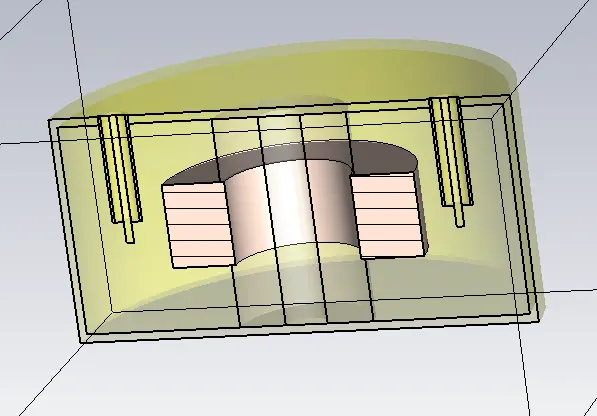

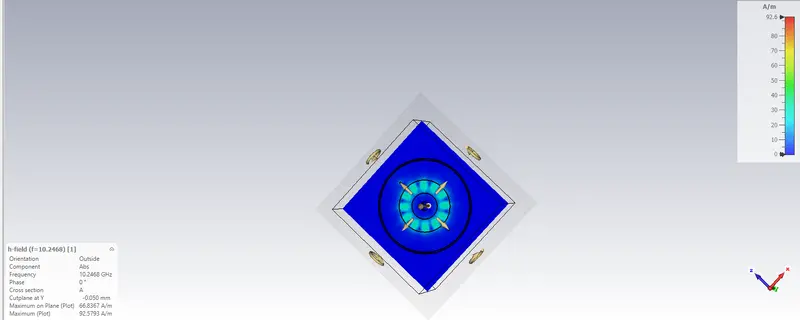

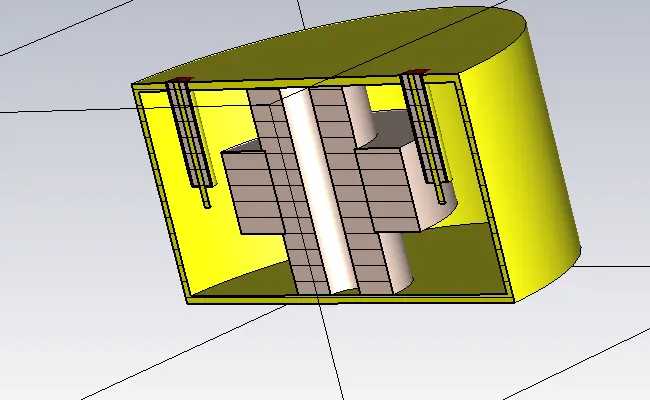

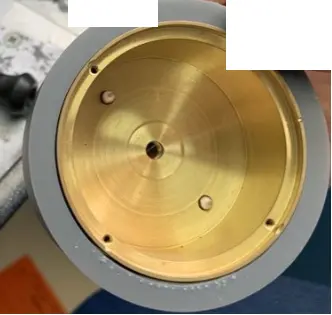

Hello, I have a wispering gallery mode at 10.24GHz, the resonator is a saphire cilinder which sits on a teflon.
I want to shift that mode to 14.5Ghz after that I need to do some tuning of the mode frequency.
I cannot change the saphire outer diameter as a way to do fine tuning for the modes frequency.
Is there some way giver the resonator structure where using some manual tuning of a screq or something I can tune the mode frequncy?
Thanks.









Last edited:
Engineering news on Phys.org
Possible Solutions:

1. Metallic Tuning Screw

Place a brass or copper screw near (but not touching) the sapphire.

Adjust its distance to perturb the evanescent field, shifting frequency (~100–500 MHz/mm).

2. Dielectric Tuner

Use a movable high-ε dielectric (e.g., TiO₂, BaTiO₃) near the resonator.
Rotate or shift it to modify the effective permittivity.

3. Magnetic Tuning (if sapphire is doped)

Apply a DC magnetic field (Faraday effect) to slightly adjust ε.

4. Stress Tuning

Apply controlled pressure via a screw on the Teflon base to induce strain in sapphire (photoelastic effect).

Key Formula:

\[
\Delta f \approx f_0 \left( \sqrt{\frac{\varepsilon_{\text{eff}} + \Delta \varepsilon}{\varepsilon_{\text{eff}}}} - 1 \right)
\]

For large shifts (→14.5 GHz): Use a high-ε ring segment.

For fine-tuning: Use a screw or movable dielectric.

  • Like
Likes yefj and tech99
Hello, could you please draw in general, its hard to imagine your the exact location of the screw?
Thanks.
"1. Metallic Tuning Screw

Place a brass or copper screw near (but not touching) the sapphire.

Adjust its distance to perturb the evanescent field, shifting frequency (~100–500 MHz/mm)."
