Mapping for Potential Distribution in a Straight Line Capacitor?

Click For Summary
SUMMARY

The discussion focuses on finding an appropriate mapping technique for analyzing potential distribution in a straight line capacitor using the x-y plane. The user seeks a specific mapping method that is not readily available in existing resources. They mention utilizing symmetry along the horizontal axis to assist in defining the axes for the mapping process. The conversation highlights the need for clear guidance on the next steps in this analytical approach.

PREREQUISITES
  • Understanding of electrostatics and potential distribution
  • Familiarity with mapping techniques in physics
  • Knowledge of capacitor design and functionality
  • Basic skills in coordinate transformations
NEXT STEPS
  • Research "Mapping techniques for potential distribution in capacitors"
  • Explore "Coordinate transformations in electrostatics"
  • Study "Symmetry applications in physics problems"
  • Investigate "Analytical methods for capacitor potential analysis"
USEFUL FOR

Students and professionals in physics, electrical engineering, and anyone involved in capacitor design and analysis will benefit from this discussion.

industrygiant
Messages
14
Reaction score
0

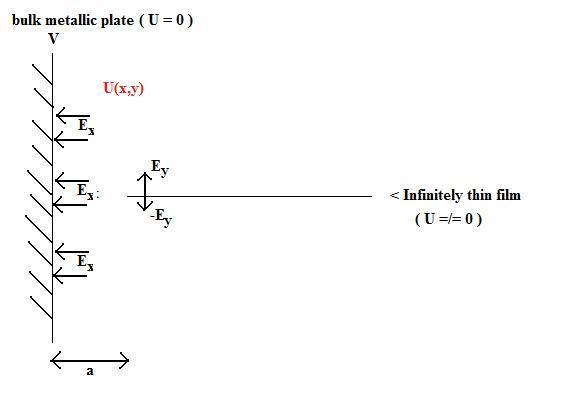

Hi, my question is what mapping to use for the problem in the picture attached.

I need to be able to find the potential distribution etc by mapping from the x-y plane (as pictured) to a straight lines plane capacitor, which would be pretty straightforward, but I can't find this map in any mapping "dictionaries"!

I guess that I could use the symmetry along the horizontal to help place my axes but obviously I am unsure on the next step to take.


Attachments

  • conformalmappingproblem.jpg
    10.5 KB · Views: 381
Physics news on Phys.org
hey industrygiant - just so you know, the pics take quite a while to clear

Ah okay thanks, didn't know :) do they work automatically when cleared? can't find anything about this on the forum...
