Two blocks on different inclines connected by string with angles 43° and 20°

4 replies · 3K views · last reply
NotSoRobot
Messages
2
Reaction score
0

Homework Statement


I have a double incline mass problem where Φ=43° and θ=20°, mass_A=1.00kg and they are connected by a massless string where the net force of each block is equal to 0.

Homework Equations


I believe I am to use Newton's 2nd law to find the force of the tension which I have next to my FBD. Since they were both 0 I set them equal to each other as you can see the arrows are directing in the photo, but I'm kind of lead nowhere. :/ I'll post the photo in 3.

My equations are:
$$\vec {T}_1 = m_A g + \hline \vec {T}_1 \cos {\phi}$$
and
$$\vec{T}_2=m_Ag+\hline \vec{T}_2\cos{\theta}$$
which I set equal to each other. I think this is how I would describe ##\vec{T}_1## and ##\vec{T}_2## with vector addition.

The Attempt at a Solution


https://livecsupomona-my.sharepoint.com/:i:/r/personal/dlsanjenis_cpp_edu/Documents/Attachments/52588613_813119429043085_4437430197272182784_n.jpg?csf=1&e=Ihd80l
[/B]

Attachments
  • Handwritten free-body diagrams on a whiteboard for two blocks on inclines joined by a string. Left: block A with forces T1, m_A g and an angle phi. Right: block B with T2 and m_B g, and angle theta. Equations below read 2.5 N... T1 cos phi and m_B g with T2 cos theta, with m_A = 1.00 kg.
    15.3 KB · Views: 434

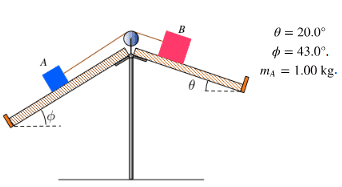

  • Diagram of two blocks on frictionless inclines joined by a string over a pulley at the peak. Block A on the left incline at angle φ, block B on the right incline at angle θ. Labels: θ = 20.0°, φ = 43.0°, m_A = 1.00 kg.
    4.7 KB · Views: 474
Last edited:
Your first two images are behind some login barrier. Please upload them directly to the forum using the tools in the toolbar.

The image of your working is sideways-on and hard to read. The bits of equations I could decipher made no sense to me.
Start with one block. What are the forces acting on it? What equations can you write?
Please type in your answers. Images are for textbook extracts and diagrams.

haruspex said:
Your first two images are behind some login barrier. Please upload them directly to the forum using the tools in the toolbar.
I'm not sure how to put them directly into the forum. I need a link, perhaps I could see if I could make this particular line public.

Edit: I guess i just figured it out, I will improve the equations now.

2ndEdit: I'm not sure how to fix my forumlas. I used the correct delimiters, but there is something else I'm not catching.

Attachments
  • Diagram of two blocks on opposite inclines connected by a string over a pulley at the peak: block A, mass 1.00 kg, on the left incline at angle phi, block B on the right incline at angle theta, with theta = 20.0 degrees and phi = 43.0 degrees.
    4.7 KB · Views: 450
Last edited:
NotSoRobot said:
I'm not sure how to put them directly into the forum. I need a link, perhaps I could see if I could make this particular line public.

Edit: I guess i just figured it out, I will improve the equations now.

2ndEdit: I'm not sure how to fix my forumlas. I used the correct delimiters, but there is something else I'm not catching.
I assumed you would be posting new equations. Are you still working on this?
You mention delimiters. Are you struggling with LaTeX?

Last edited:
NotSoRobot said:

Homework Statement


I have a double incline mass problem where Φ=43° and θ=20°, mass_A=1.00kg and they are connected by a massless string where the net force of each block is equal to 0.

Homework Equations


I believe I am to use Newton's 2nd law to find the force of the tension which I have next to my FBD. Since they were both 0 I set them equal to each other as you can see the arrows are directing in the photo, but I'm kind of lead nowhere. :/ I'll post the photo in 3.

My equations are:
$$\vec {T}_1 = m_A g +\color{red}{\text{ \hline }} \ \ \vec {T}_1 \cos {\phi}$$
and
$$\vec{T}_2=m_Ag+\color{red}{\text{ \hline} }\ \ \vec{T}_2\cos{\theta}$$
which I set equal to each other. I think this is how I would describe ##\vec{T}_1## and ##\vec{T}_2## with vector addition.

The Attempt at a Solution


https://livecsupomona-my.sharepoint.com/:i:/r/personal/dlsanjenis_cpp_edu/Documents/Attachments/52588613_813119429043085_4437430197272182784_n.jpg?csf=1&e=Ihd80l [/B]
Nothing wrong with your LaTeX delimiters. I placed the \hline in a text box &colored it red.

I'm not sure what you were trying to do with the \hline command.

Those equations don't make much sense.
