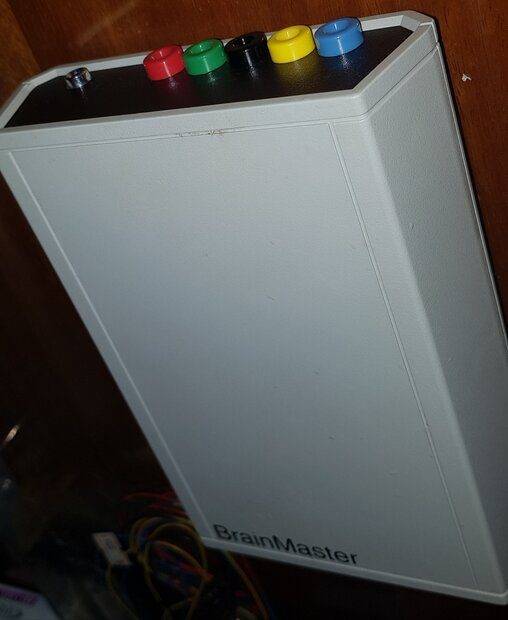

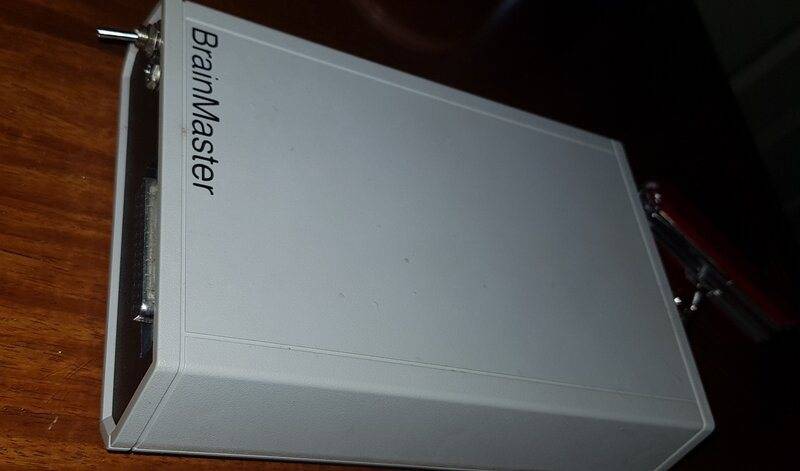

I got from my drawer last night a vintage Brainmaster 2E I bought late 1990s that I used only a few times during that period. It has serial port at back. I don't know if it will work using a USB to serial port adapter connected to my laptop. Do you think it will work?

My question concerns the gain of the amplifier and the noise. It says above:

Notch Filtering: 40 Hz cutoff
Common Mode Rejection >100 dB
Gain 20,000
Sampling 8 Bit
Input Impedance 10 M ohms

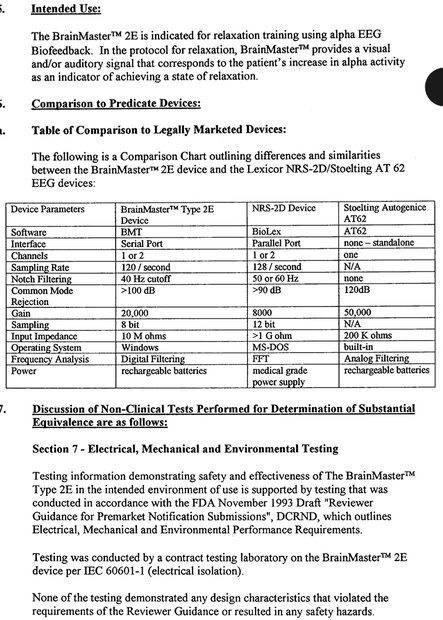

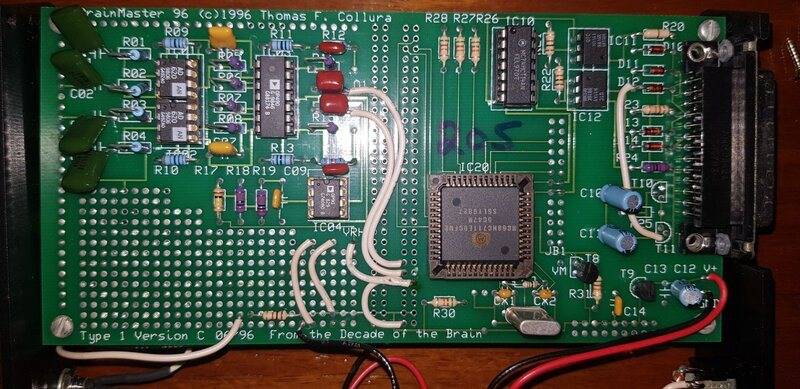

How does it compare say to your voltmeter? What is the gain of a regular voltmeter? It has this chip.



Familiar with it?

I just want to know how it compares to modern amplifier and whether it's worth taking the trouble to maybe buy an old pc to run it. Is it very ancient and maybe the gain of regular voltmeter is double it? Or still much less?

Computer science news on Phys.org
Brainwaves are not static in time. How do you propose to use Voltmeter?

  • Like
Likes   Reactions: Vanadium 50 and dlgoff
Is this part of your EEG/Monopole Detector idea? If so, it's better to tell us what you're trying to do rather than dropping bits and pieces like breadcrubs.

  • Like
Likes   Reactions: phinds
I love the name BrainMaster

Thread is locked temporarily so I can discuss some safety issues with the OP...

(if you aren't careful with the electrical isolation to EEG electrode pads that are connected to your scalp, bad things can happen; don't ask me how I know this...)

  • Wow
Likes   Reactions: Wrichik Basu
After a PM discussion with the OP, he is not trying to use this for a medical application. Thread is reopened for now.

Vanadium 50 said:
Is this part of your EEG/Monopole Detector idea? If so, it's better to tell us what you're trying to do rather than dropping bits and pieces like breadcrubs.
@Awwtumn -- Can you address V50's question please? Thanks.

berkeman said:
(if you aren't careful with the electrical isolation to EEG electrode pads that are connected to your scalp, bad things can happen; don't ask me how I know this...)
Is this from personal experience or was there an unsuspecting victim?

vela said:
Is this from personal experience or was there an unsuspecting victim?
I told you not to ask me about this! :wink:

It was on myself -- I never would have tried what I did on another person, even with their permission.

Now back to our regularly-scheduled programming. Nothing to see here folks, move along...

  • Haha
Likes   Reactions: anorlunda and phinds
Awwtumn said:
It has serial port at back. I don't know if it will work using a USB to serial port adapter connected to my laptop. Do you think it will work?
I think the serial interface can communicate with your modern computer if you buy the right adapter (I would be shocked if it wasn't RS-232). This is a pretty common problem and can be easily tested with a terminal app.

However, I doubt that the original SW will work, if you still have it. Lots of stuff written for Windows 3.1, Windows 95, etc. are toast now. IDK, maybe if you install a virtual machine? Writing your own code would require knowing what to say to this device, you'll need their SW interface docs, which I'm sure they never published (or even wrote).
