Waveform Revision: Past Exam Papers for Test Prep on Thursday

3 replies · 2K views · last reply
TommyM
Messages
2
Reaction score
0
I'm doing some past exam papers to revise for my test on thursday. And I can't work out the last question in this problem.

I worked out the time for one complete cylce is 50 microseconds, and the frequency is 20,000Hz, 1/Time period. I can't work out the last bit though.

Attachments

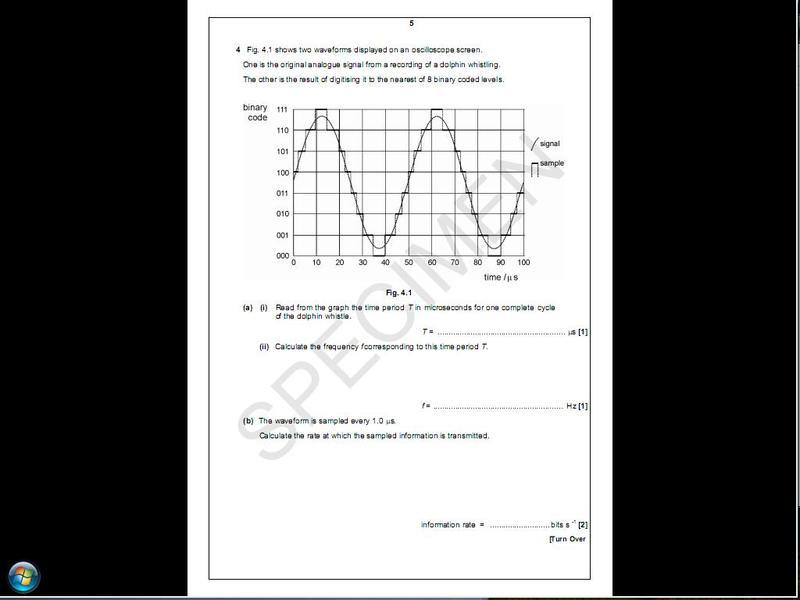

  • Exam page showing Fig. 4.1: a sine waveform on a grid of time in microseconds from 0 to 100 against binary code 000 to 111, with stepped sample points overlaid, plus questions (a) and (b) below.
    31.3 KB · Views: 519
TommyM said:
I'm doing some past exam papers to revise for my test on thursday. And I can't work out the last question in this problem.

I worked out the time for one complete cylce is 50 microseconds, and the frequency is 20,000Hz, 1/Time period. I can't work out the last bit though.

I think they are just asking for the sample rate, which is related to the sample period, which they give you. Not sure if it's any more compilcated than that...

TommyM said:
so its 8bits s-1?

No. The problem says, "The waveform is sampled every 1.0us", and then asks for the corresponding information transmission rate or something. The wording is a bit off, but I think they just want to know the frequency of the waveform sampling, which you get from the 1us period number.
