What happens when switch 1 closes in an electromagnetic relay?

2 replies · 4K views · last reply
supernova1203
Messages
209
Reaction score
0
Electromagnetic relay(check my solution please :) )

Homework Statement


The following diagram shows an electric device that uses some of the principles discussed in this lesson.

Discuss the sequence of events that occur when switch 1 is closed.

*The diagram is in the attachment, you don't have to download the attachment to view it *

Homework Equations


The Attempt at a Solution



Current flows through the circuit, coming out of the positive terminal in circuit 1, hitting the metal which is wrapped around a coil, this would create a strong magnetic field , which would then act upon the 2nd circuit. This then immediately closes the 2nd switch, the current in the 2nd circuit can then flow.
Is this what happens? If not can someone please tell me what happens then?

Attachments

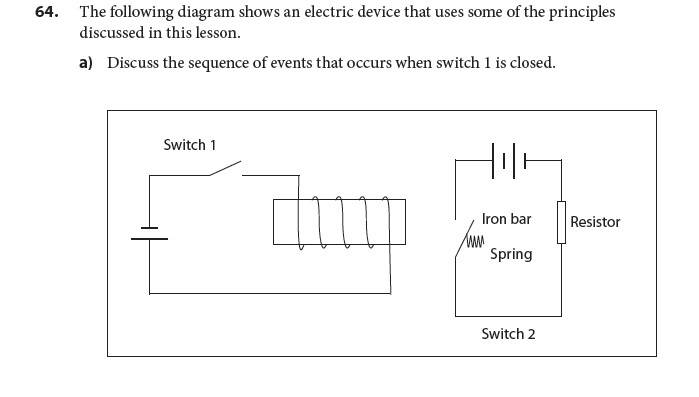

  • Two-circuit diagram of an electromagnetic relay: on the left, Switch 1, a battery and a coil; on the right, a battery, Iron bar, Spring, Switch 2 and a Resistor.
    Lesson 1 question 1.jpg
    18.7 KB · Views: 1,100


supernova1203 said:

Homework Statement


The following diagram shows an electric device that uses some of the principles discussed in this lesson.

Discuss the sequence of events that occur when switch 1 is closed.

*The diagram is in the attachment, you don't have to download the attachment to view it *

Homework Equations





The Attempt at a Solution



Current flows through the circuit, coming out of the positive terminal in circuit 1, hitting the metal which is wrapped around a coil, this would create a strong magnetic field , which would then act upon the 2nd circuit. This then immediately closes the 2nd switch, the current in the 2nd circuit can then flow.



Is this what happens?

Yes, but not instantly :wink:
