Where does DEz=8333N(5/15) come from in this calculation?

  • Thread starter boyongo
  • Start date
  • Tags Tags
    Mystery
3 replies · 2K views · last reply
boyongo
Messages
27
Reaction score
0
Im having trouble understating this:

The last part:

DEz=8333N(5/15) where does this come from?

15m is the height and 5m is the base of the triangle.

Attachments

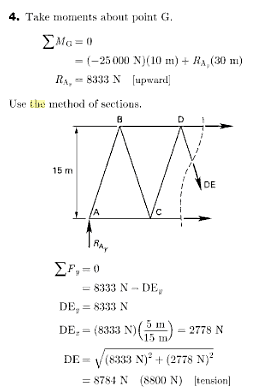

  • Truss diagram with top chord points B and D, bottom points A and C, height 15 m, and member DE drawn from D; below it, the force balance and member force calculation for DE, reading DEz = (8333 N)(5 m / 15 m) = 2778 N and DE = 8784 N [tension].
    Screen Shot 2011-11-27 at 2.53.49 PM.png
    5.7 KB · Views: 554

Discussion

It's the horizontal component of DE i.e FDEcosθ
where cosθ = Opposite/Adjacent = (15/5)
