Force Diagram, Position vs Time Plot: Construct, Calculate, Sketch

Click For Summary
SUMMARY

The discussion focuses on analyzing the vertical motion of an elevator through a Position vs Time plot. Key tasks include constructing a Velocity vs Time plot, calculating average acceleration between t = 8.0s and t = 10s, sketching a force diagram for a 70 kg occupant, and determining the Normal force (FN). The calculated average acceleration is -0.7 m/s2, and the Normal force is incorrectly computed as -163.10 N, indicating a misunderstanding of the force diagram requirements.

PREREQUISITES
  • Understanding of kinematics, including Position vs Time and Velocity vs Time plots.
  • Knowledge of Newton's second law of motion and force calculations.
  • Familiarity with basic concepts of acceleration and its calculation.
  • Ability to sketch force diagrams and interpret physical scenarios.
NEXT STEPS
  • Learn how to construct Velocity vs Time plots from Position vs Time data.
  • Study the principles of calculating acceleration in various motion scenarios.
  • Research how to accurately sketch force diagrams, including all acting forces.
  • Explore the correct application of Newton's laws to determine Normal force in different contexts.
USEFUL FOR

Students in physics, educators teaching kinematics, and anyone involved in analyzing motion and forces in mechanical systems.

BrownBoi7
Messages
24
Reaction score
0

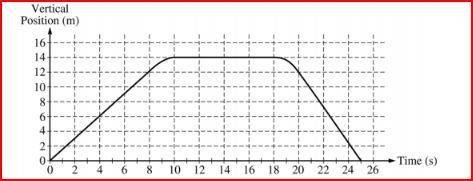

The vertical motion of an elevator is recorded and a Position vs Time plot is generated. The plot is shown in the image attached.


1. Construct a scale drawing of the associated Velocity vs Time plot complete with axis labels.

2. Calculate the average acceleration for the time interval t =8.0s to t = 10s.

3. Sketch a force diagram of an elevator occupant with a mass of 70 kg during the time interval t =8.0s to t = 10s.

4. Calculate the Normal force F N of the occupant using the acceleration you calculated in part 2

Can somebody please tell me where I went wrong? Thanks!

Mt attempt:
1. Velocity during 0 to 10 = 14 m / 10 s = 1.4 m/s
Velocity during 10 to 19 = 0 m/s
Velocity during 19 to 25 = -14 m /6 s = - 2.33 m/s

2. a = delta v/delta t = 0 - 1.4 m/s/2 s = -0.7 m/s^2

3. I have no clue. How do you figure this one out?

4. Fn = 70 kg * -2.33 m/s^2 = -163.10 N


Attachments

  • p vs t graph.JPG
    p vs t graph.JPG
    15.9 KB · Views: 519
Physics news on Phys.org
3. you know the mass and the acceleration, so you know the force for the asked interval.

Yea but apparently my answers to other questions are also wrong. I don't know what's the problem. And 3 is asking for a force sketch.
