Lug FBD and simple mechanicals

In summary, a Lug FBD is a simplified representation of a mechanical system that only shows the forces acting on the system without showing any physical components. It is used in engineering and physics to analyze and understand the forces in a system. This is different from a traditional free body diagram, which includes both physical components and forces. Lug FBDs are commonly used in mechanical engineering, structural analysis, and design processes. To create a Lug FBD, all the forces and their directions must be identified and labeled on a simplified diagram. However, Lug FBDs have limitations such as not showing moments or torques and being simplified representations that may not accurately reflect real-world systems.
  • #1
Boolean
1
0
TL;DR Summary
Having trouble with some mechanics hand calcs

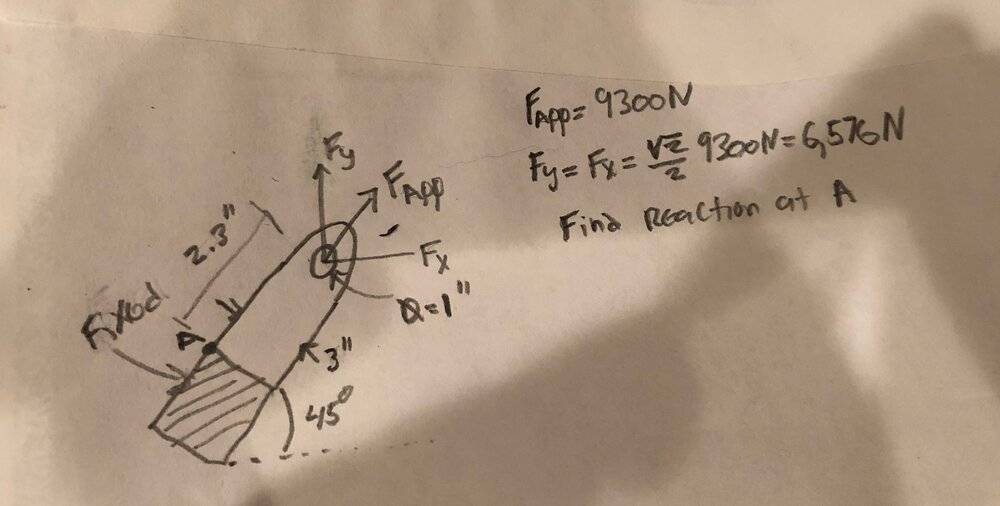

Pretty simple FBD of a lug in a pull test that I solved using FEA software, but I’m having trouble checking with a hand calc.
Back end is fully supported in a test fixture
Feel free to make up numbers where not given


Attachments

  • B151DB72-2B95-41CE-A973-86750EE8B77E.jpeg
    40.2 KB · Views: 162
Engineering news on Phys.org
  • #2
Hello @Boolean , :welcome: !

Boolean said:
that I solved using FEA
What came out ? With what dimension ?
