Trouble locating and describing a convex lens image

4 replies · 3K views · last reply
Alain12345
Messages
37
Reaction score
0
I have to complete a problem about locating an image for a convex lens but I'm having trouble with it. I tried it out, but I can't complete it. Can someone help please?

Locate the image for the convex lens below. Use any two rays to do so. Give the characteristics of the image.

I'm having trouble particularly with describing the image. I'll attach the picture of the lens and my answer to it.

Attachments

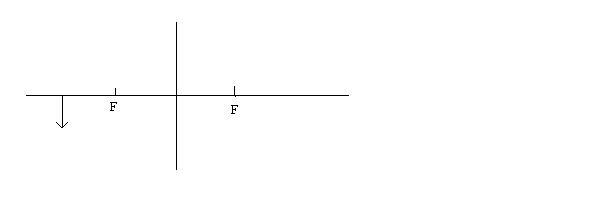

  • Ray diagram setup with a horizontal principal axis, a vertical lens line at centre, focal points F marked on each side, and a downward arrow object placed to the left of the first focal point.
    Convex lens question.JPG
    1.6 KB · Views: 490
  • Ray diagram of a convex lens with principal axis, focal points F on each side, and an object arrow on the left; two rays are traced through the lens to an image arrow on the right.
    Convex lens question- my answer.JPG
    3.7 KB · Views: 484
you need to work out the focal length of the lense, try looking in an optics book.

Is the image real or virtual? Is it upright or inverted? How much larger is it than the object?

NEWO said:
you need to work out the focal length of the lense,

No, it's a graphical problem. The first diagram shows the focal points and the location of the object, so he has enough information to locate the image, which he did in the second diagram.

All he has to do now is describe the key characteristics of the image. Usually this means saying whether it's real or virtual; upright or inverted; enlarged or reduced in size. Maybe calculate the numerical value of the magnification by measuring the sizes of the object and image.

okay, thanks a lot guys.

So it's real, inverted, and M>1
