## Plotting series in Matlab

I am going to plot two series in Matlab. They are as following. please help me to write the appropriate code for them:

1-f(t)=(2/pi)+(4/pi)*Ʃ(1/(1-4*n^2))*cos(2*n*pi*t) -1≤t≤1 n=1 forN=200

2-f(t)=(4/0.25^2)*Ʃ(sin(0.25*n*pi)/(n*pi)^2)*sin(n*pi*t) -2≤t≤2 n=1,3,5 forN=200

 PhysOrg.com science news on PhysOrg.com >> Front-row seats to climate change>> Attacking MRSA with metals from antibacterial clays>> New formula invented for microscope viewing, substitutes for federally controlled drug
 Recognitions: Homework Help Welcome to PF: You want to construct a vector for n, the use that and your formula to compute a vector of each element in the series. The complication appears to be that you have two variables: n and t. So you'll probably have to construct vectors for the different frequencies as well as the coefficients ... with the aim of ending up with a 2D matrix whose columns are the elements of the sum (corresponding to each n) and the rows are the functions at discrete samples (corresponding to values of t). Summing the columns provides a row vector whose entries are f(t) sampled for discrete values of t. Then you can plot(t,f).
 Could you please confirm the parentheses are correct in the two expressions? As written, I interpret the summation to be over n, ie {sum [1/(1-4*n^2)*cos(2*n*pi*t)] over n=1..200} but the expression 1 appears to be written as cos(2*n*pi*t)*{sum[1/(1-4*n^2)] over n=1..200} (et sim for 2). Do you want f as a function of t and variable n or just as a function of t with the specified range for n?

Recognitions:
Homework Help

## Plotting series in Matlab

I ust figured everything after the sigma was included in the sum.

for 1.$$f(t)=\frac{2}{\pi} + \frac{4}{\pi} \sum_{n=1}^{200} \frac{\cos(2n\pi t)}{1-4n^2}$$... and for 2.$$f(t)=64\sum_{n=1}^{200} \frac{\sin(\frac{n\pi}{4})}{(n\pi)^2}\sin(n\pi t)$$

I still think the strategy I've outlined is the way to go here - we should avoid actually providing the code though.

 Quote by Simon Bridge Welcome to PF: You want to construct a vector for n, the use that and your formula to compute a vector of each element in the series. The complication appears to be that you have two variables: n and t. So you'll probably have to construct vectors for the different frequencies as well as the coefficients ... with the aim of ending up with a 2D matrix whose columns are the elements of the sum (corresponding to each n) and the rows are the functions at discrete samples (corresponding to values of t). Summing the columns provides a row vector whose entries are f(t) sampled for discrete values of t. Then you can plot(t,f).
That would be a possible solution.What if we do not consider sum command?

 Quote by Simon Bridge I ust figured everything after the sigma was included in the sum. for 1.$$f(t)=\frac{2}{\pi} + \frac{4}{\pi} \sum_{n=1}^{200} \frac{\cos(2n\pi t)}{1-4n^2}$$... and for 2.$$f(t)=64\sum_{n=1}^{200} \frac{\sin(\frac{n\pi}{4})}{(n\pi)^2}\sin(n\pi t)$$ I still think the strategy I've outlined is the way to go here - we should avoid actually providing the code though.
In the second one n=1,3,5. everything else is right.

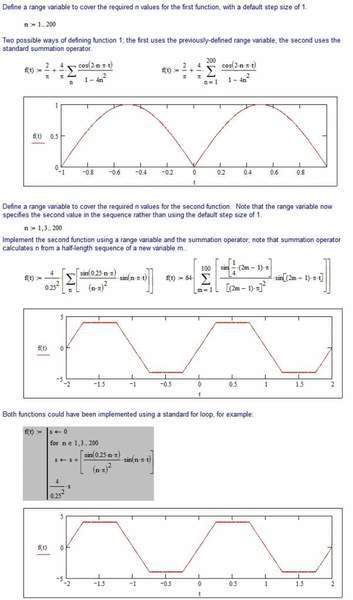

Well, here's how it might be done in Mathcad.

I have gut feeling (a colon sensation, one might say) that there is sum way of doing a similar thing in Matlab. I have a forboding that loops may occur to somebody, but they should probably be avoided.

Attached Thumbnails

Attached Files
 phys - 12 06 24 summation 01.mcd (10.0 KB, 1 views)

Recognitions:
Homework Help
 Quote by Mphil1984 That would be a possible solution.What if we do not consider sum command?
What exact steps you use are up to you - I have not suggested any exact code, just the mathematical structures you'd need to employ.

Technically you don't even need a 2D matrix to store all the terms, you could use a different 1D vector for each of the 200 terms instead. The approach outlines is a "brute force" method - there will be more elegant approaches.

Note: for the second one where n=1,3,5...200 (or is it n=1,3,5...399 for N=200 terms?)
Anyway = in matlab you need only do the step, so all the odd numbers are n=1:2:199; for all the odd numbers from 1 to 200. Writing it out in sigma notation is trickier than that... I need to sum over integer m from 0 to 99 and n=2m+1 and it looks like:$$f(t)=64\sum_{n=1}^{200} \sin\left ( \frac{(2n-1)\pi}{4}\right ) \frac{\sin((2n-1)\pi t)}{((2n-1)\pi)^2}$$... for the first 200 odd numbers.
[One way matlab/octave is easier than pencil and paper :) ]

Note - the mathcad notes look like what I was suggesting only using jargon.
