Airys stress function -- structures

1 reply · 2K views · last reply
praveenpandiyan
Messages
28
Reaction score
1

Homework Statement


For (fi)= (b/6) x*y3 +C*xy show that simply supported beam of 2L loaded concentrated load at mid span.,the stress function satisfy loading condition is (fi) .treat concentrated load as shear stress suitably distributed to shoot this function. so that intergtal of limit (h to -h) for stress stress (tou)xy= (-W/2) ..

Homework Equations


see attachment

The Attempt at a Solution


boundary conditions 1. (sigma)yy=0 for y =h to -h
to remove constants in stress function i need one more boundary condition .. ?? any help ll be apreciated . thanks

Attachments

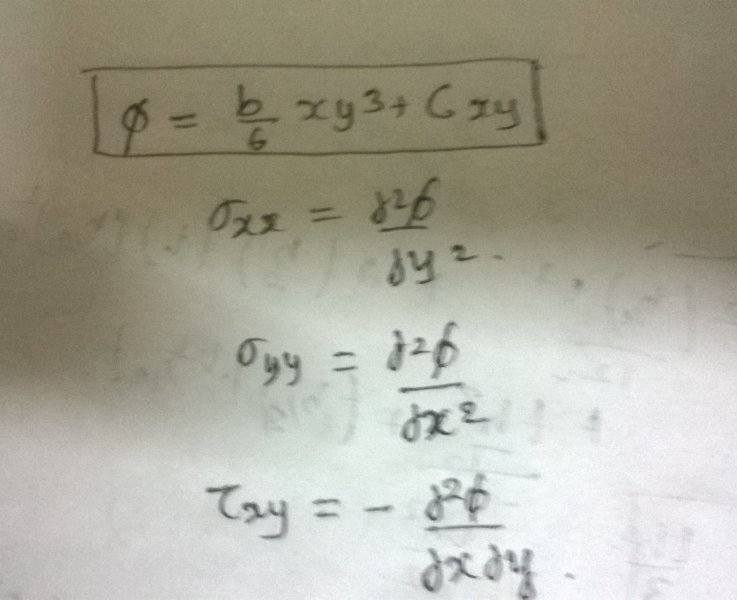

  • Handwritten notes on a whiteboard: boxed stress function phi = (b/6) xy^3 + Cxy, followed by sigma_xx = d2phi/dy2, sigma_yy = d2phi/dx2, and tau_xy = -d2phi/dxdy.
    35.4 KB · Views: 496
i found other boundary condition too ..beam shear stess (tou)xy=o at y=(-h &=+h)..thanks anyway ..
